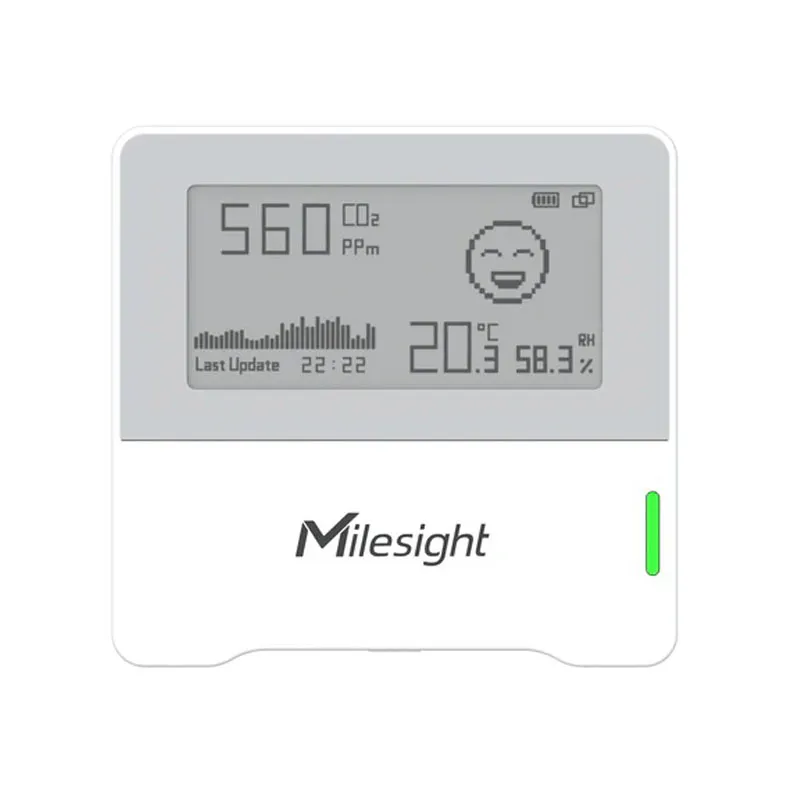

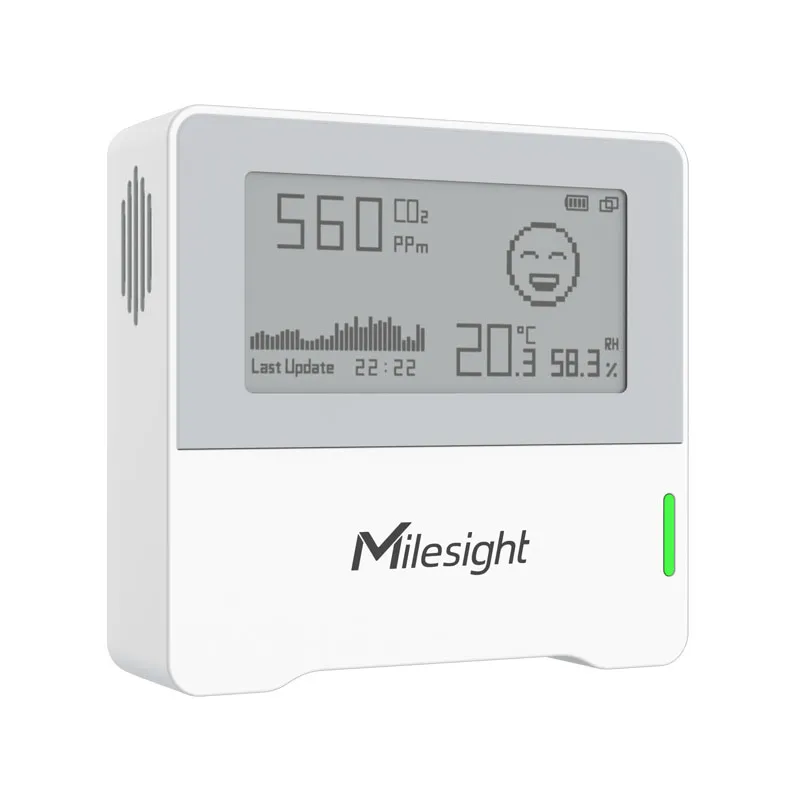

AM103 Ambience Monitoring Sensor, Indoor Air Quality (IAQ) Monitoring LoRaWAN
AM103 is a compact indoor ambiance monitoring sensor for the measurement of temperature, humidity, and CO2. These data will be shown on the E-ink screen in real-time, which allows quantifying the indoor environment and comfort. AM103 is widely used for offices, stores, classrooms, hospitals, etc.
Log in / Sign up
Login
Register
You may also like...
AM103 CO2, Humidity, Temperature Monitoring Sensor
$237.50
- 3 Sensors in 1: CO2 & Humidity & Temperature
- Vivid Emoticon Indication
- Traffic Light Status Indicator
- US915 Support
15 in stock
Apart from screen display, sensor data can also be transmitted using LoRaWAN. With this low-power technology, AM103canwork for more than 3 years with 2 replaceable batteries.
Ensuring Health of Occupants Everywhere
3 Sensors in 1
Built-in high accuracy sensors to track the invisible elements of the air to ensure comfort at every moment.
Low Power Consumption
Smart Screen Mode
When the current collected value is close to the last value*, the screen will stop updating to save power.
* When the reading is within a certain range (tem ≤ ±0.5°C and hum ≤ ±3% and CO2 ≤ ±50 ppm).
** If the screen stops updating for 10 minutes, it will update data automatically.
Features
AM103 Indoor Ambience Monitoring Sensor
- Integrated with multiple sensors like humidity, temperature and CO2
- Visual data and clear emoticon to understand the comfort level easily via E-ink screen
- Equipped with traffic light indicator to indicate multi-level CO2 threshold alarms
- More than 3 years work without replacing batteries
- Built-in NFC for easy configuration
- Compliant with standard LoRaWAN gateways and network servers
- Quick and easy management with Milesight IoT Cloud solution
Specifications
Wireless Transmission
Technology: LoRaWAN
Frequency: CN470/IN865/RU864/EU868/US915/AU915/KR920/AS923-1&2&3&4
Tx Power: 16 dBm (868 MHz)/22 dBm (915 MHz)/19 dBm (470 MHz)
Sensitivity: -137dBm @300bps
Mode: OTAA/ABP Class A
Sensors
Temperature
Range: -20°C to + 70°C
Accuracy: 0°C to + 70°C (+/- 0.3°C), -20°C to 0°C (+/- 0.6°C)
Resolution: 0.1°C
Humidity
Range: 0% to 100% RH
Accuracy: 10% to 90% RH (± 3%), below 10% and above 90% RH (± 5%)
Resolution: 0.5% RH
Carbon Dioxide (CO2)
Range: 400 to 5000 ppm
Accuracy: ± (30 ppm + 3 % of reading)
Resolution: 1 ppm
Display & Configuration
Display
AM103: 2.13-inch Black & White E-Ink Screen
AM103L: Not Support
Button: 1 × Power Button
LED: 1 × Traffic Light Status Indicator
Configuration: Mobile App via NFC
Physical Characteristics
Power Supply: 2 × 2700 mAh ER14505 Li-SOCl2 Replaceable Batteries
Battery Life (10 min interval; Test under laboratory conditions and for guideline purposes only)
AM103: Around 3 Years
AM103L: Around 4 Years
Operating Temperature: -20°C to +60°C (E-Ink Screen: 0°C – 40°C)
Relative Humidity: 0% to 95% (non-condensing)
Ingress Protection: IP30
Dimension: 68 × 65 × 20.5 mm (2.68 × 2.56 × 0.81 in)
Installation: Wall Mounting
Resources
1 review for AM103 CO2, Humidity, Temperature Monitoring Sensor
Only logged in customers who have purchased this product may leave a review.
Jacob Kinyon (verified owner) –
Great c02, temp, humidity sensor. Works flawlessly for indoor agriculture. Device display makes for quick and easy decision making,
