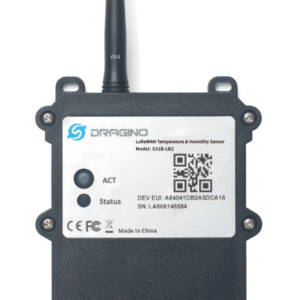

Dragino S31B-LB2 LoRaWAN Temperature & Humidity Sensor

The Dragino S31B-LB2 is a LoRaWAN Temperature and Humidity Sensor for Internet of Things solution. It is used to measure the surrounding environment temperature and relative air humidity precisely, and then upload to IoT server via LoRaWAN wireless protocol.

• LoRaWAN 1.0.3 Class A
• Ultra-low power consumption
• Measure range -40°C ~ 80°C
• Temperature & Humidity alarm
• Bands: CN470/EU433/KR920/US915/EU868/AS923/AU915/IN865
• Support Bluetooth v5.1 and LoRaWAN remote configure
• Support wireless OTA update firmware
• Uplink on periodically
• Downlink to change configure
• IP66 Waterproof Enclosure
• 19000mAh Li/SOCl2 Battery

Applications:

• Wireless Alarm and Security Systems
• Home and Building Automation
• Automated Meter Reading
• Industrial Monitoring and Control
• Long Range Irrigation Systems, etc.

Common DC Characteristics:

• Supply Voltage: Built-in Battery , 2.5v ~ 3.6v
• Operating Temperature: -40 ~ 85°C

Temperature Sensor:

• Range: -40 to + 80°C
• Accuracy: ±0.2 @ 0-90 °C
• Resolution: 0.1°C
• Long Term Shift: <0.03 °C/yr

Humidity Sensor:

• Range: 0 ~ 99.9% RH
• Accuracy: ± 2%RH ( 0 ~ 100%RH)
• Resolution: 0.01% RH
• Long Term Shift: <0.25 %RH/yr

LoRa Spec:

• Frequency Range,  Band 1 (HF): 862 ~ 1020 Mhz
• Max +22 dBm constant RF output vs.
• RX sensitivity: down to -139 dBm.
• Excellent blocking immunity

Battery:

• Li/SOCI2 un-chargeable battery
• Capacity: 19000mAh
• Self-Discharge: <1% / Year @ 25°C
• Max continuously current: 130mA
• Max boost current: 2A, 1 second

Power Consumption:

• Sleep Mode: 5uA @ 3.3v
• LoRa Transmit Mode: 125mA @ 20dBm, 82mA @ 14dBm
