Milesight VA05 Advanced Staff Detection Kit

Milesight VA05 Advanced Staff Detection Kit

Your people counter counts everyone — but not everyone is a customer. The Milesight VA05 Advanced Staff Detection Kit works with the VS125 and VS125-LW to identify staff and separate employee traffic from customer counts.

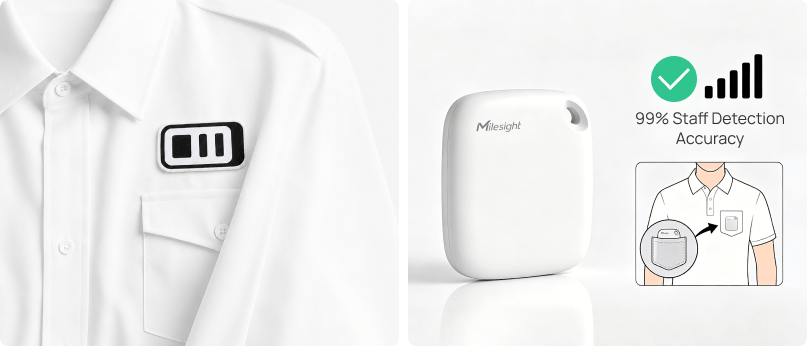

Using high-precision UWB technology, VA05 achieves up to 99% staff identification and counting accuracy. Compact rechargeable tags fit discreetly inside a front pocket, eliminating the need for visible badges or lanyards while preserving the store’s visual aesthetics and customer experience.

Designed for retail environments, VA05 combines precise staff detection, convenient tag charging and management, and integration with Milesight people counting analytics.

Designed for Accurate Retail Analytics

• Separate staff from visitors – improve the accuracy of customer footfall data

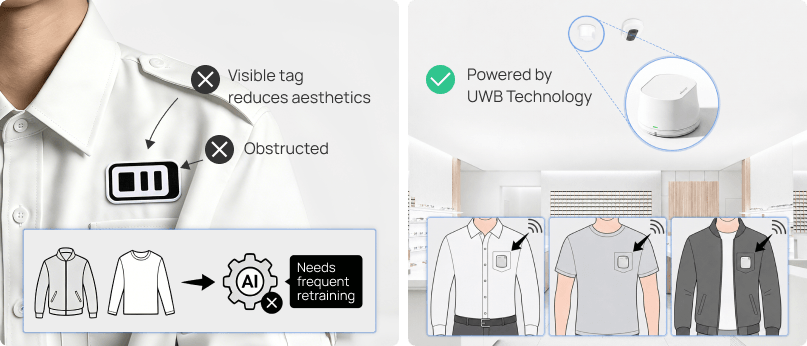

• Discreet staff identification – tags can be carried inside a front pocket
• UWB positioning – reliable identification without depending on visible uniform features
• Simple daily management – charge and store multiple tags from one base
• Privacy-focused – staff identification is anonymized

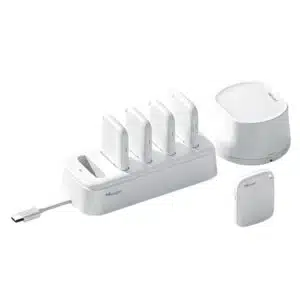

Everything needed for VA05 staff detection is brought together in one kit. The system combines a UWB anchor, rechargeable staff tags, and a dedicated charging base for a complete staff-identification workflow.

Standard kit includes: 1 × VA05-A Anchor, 5 × VA05-T Tags, 1 × VA05-CB Charging Base, anchor mounting template and bracket, screw kits, power adapter, quick guide card, and warranty card.

Compatible People Counters: VS125-LW and VS125. Supported hardware and firmware versions apply.

Milesight People Sensing solutions deliver precise foot traffic insights. From individual retail stores to larger building deployments, these solutions help organizations understand visitor flow, optimize operations, and make data-driven decisions while supporting privacy-focused analytics.

By distinguishing staff from customers, VA05 adds another layer of context to VS125 and VS125-LW people counting data.

• High-precision UWB staff identification and positioning
• Up to 99% staff identification and counting accuracy
• Compliant with IEEE 802.15.4 UWB standard
• Ultra-compact, lightweight pocket tag
• Supports staff location and movement analysis

• Charging and storage for up to five tags
• Supports convenient magnetic charging
• Designed for full retail operating hours
• Works with compatible VS125 and VS125-LW devices
• Anonymized staff identification for privacy-focused analytics

VA05-A UWB Anchor

• Model: VA05-A
• Technology: UWB
• Installation Height: 1.9 m – 6 m
• Field of View: 120° Horizontal / 120° Vertical
• UWB Band: 7.75 GHz – 8.25 GHz (Channel 9)
• Wireless Protocol: Bluetooth 5.3
• Antenna: Internal
• Tx Power: 6 dBm

• Power Supply: DC 3.3V / 0.5A via UART Serial Port
• Typical Power Consumption: < 300 mW
• Dimensions: Ø90 × 59.5 mm
• Weight: 110.85 g
• Ingress Protection: IP40
• Housing: ABS+PC (UL94 V2)
• Operating Temperature: -20°C to 60°C
• Relative Humidity: 0–95% non-condensing
• Regulatory: CE, FCC; RoHS

Compatible Versions:
VS125-LW: Hardware v1.1 and later, Firmware v1.0.5 and later
VS125: Hardware v2.2 and later, Firmware v1.0.6 and later

VA05-T UWB Staff Detection Tag

• Model: VA05-T
• Technology: UWB
• UWB Band: 7.75 GHz – 8.25 GHz (Channel 9)
• Wireless Protocol: Bluetooth 5.3
• Antenna: Internal
• Tx Power: 6 dBm
• LED Indicator: 1
• Multi-function Button: 1

• Battery: 450 mAh rechargeable lithium polymer
• Battery Life: Around 3 days (24-hour operation)
• Battery Health: 500 cycles
• Charging: DC 5V / 0.2A via VA05-CB
• Dimensions: 68.2 × 50 × 12.3 mm
• Weight: 29.7 g
• Ingress Protection: IP40
• Operating Temperature: -20°C to 60°C
• Relative Humidity: 0–95% non-condensing
• Regulatory: CE, FCC; RoHS

VA05-CB Tag Charging Base

• Model: VA05-CB
• Charging Slots: 5
• Charging Type: Pogo Pin
• Output: 5V / 0.2A per slot
• Power Input: Type-C
• Power Supply: DC 5V / 2A

• Full-load Power Consumption: < 300 mW
• Dimensions: 176.5 × 80.6 × 42.2 mm
• Weight: 236.1 g
• Ingress Protection: IP30
• Housing: ABS+PC (UL94 V2)
• Operating Temperature: -20°C to 60°C
• Relative Humidity: 0–95% non-condensing
• Regulatory: CE, FCC; RoHS

How do I calibrate VA05 tags?

Calibration aligns the VA05 UWB anchor and staff tag with the paired VS125 or VS125-LW so staff identification and positioning remain accurate.

Before you start:

• Confirm the VS125 or VS125-LW meets the required hardware and firmware version.
• Securely install the VA05 anchor near the VS device.
• Set the VS device Working Mode to Standalone.
• Ensure the staff tag is charged and powered on.
• Make sure at least half of the live-view area is accessible for calibration.

Calibration steps:

1. Open the VS device web interface and go to Rule.
2. Enable Staff Detection and select UWB KIT.
3. Click Calibrate to begin the anchor calibration process.
4. Place one powered tag in a front-facing pocket with the button side facing away from the body and toward the anchor. Power off or remove other tags from the calibration area.
5. Move to the system-recommended calibration area and complete the first calibration point. Repeat until all four calibration points are completed.
6. After the four points are complete, face the anchor and walk around the detection area while wearing the tag to verify the result.
7. If the tag appears green for most of the verification walk, confirm the calibration. If it appears red for most of the walk, check tag orientation and obstructions and repeat the calibration.

Calibration should be performed before initial use and repeated whenever the anchor or VS device position is changed.
