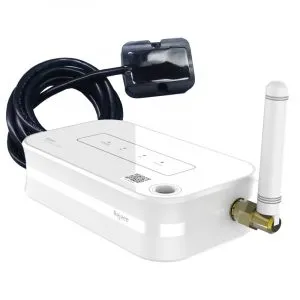

R718DA2 – Wireless LoRaWAN 2-Gang Vibration Sensor Rolling Ball Type
R718DA2 is equipped with two external rolling ball-type vibration sensors. When either of the vibration sensors moves or vibrates, R718DA2 can detect vibration or moving signals and send an alert to the data center through LoRaWAN™.
R718DA2 – Wireless 2-Gang Vibration Sensor Rolling Ball Type is fully compatible with LoRaWAN™ protocol (Class A).
Features
*1. Actual range may vary depending on environment.
*2. Battery life is determined by sensor reporting frequency and other variables
Specifications
R718DA2 – Wireless LoRaWAN 2-Gang Vibration Sensor
Electric
Input Power: 2 x 3.6V ER14505 AA lithium batteries(3.6V2400mah/section）
Sleeping Mode: 26uA
Wake up Mode: 6.3mA@3.3V
Receiving Current (max): 11mA @3.3V
Transmitting Current (max): 120mA/3.3V
Battery Voltage Measurement Accuracy: ±0.1V
Low Voltage Threshold: 3.2V
Frequency
TX Power: 19dBm±1dBm
Rx Sensitivity:
-136dBm (LoRa，Spreading Factor=12, Bit Rate=293bps )
-121dBm (FSK,Frequency deviation=5kHz, Bit Rate=1.2kbps)
Antenna Type: Build-in antenna
Communication Range: 10 km (line-of-sight, the actual transmission distance depends on the environment)
Data Transfer Rate: 0.3kbps～50kbps
Spread Technique: LoRa/FSK
Available Frequency: US915 AU915 AS923 EU868 KR920 CN470
Configured before shipment
Physical
Dimension: Main Part: L: 112mm*W: 65mm*H: 32mm
Weight: 151g
Environment Temperature Range: -20℃ ～ 55℃
Environment Humidity Range: <90% RH (No condensation)
Storage Temperature: -40℃ ～ 85℃
IP Rating (Main Part): IP67
IP Rating (External Sensor): IP67
