Original price was: $65.00.$52.00Current price is: $52.00.
Out of stock
Want to be notified when this product is back in stock?

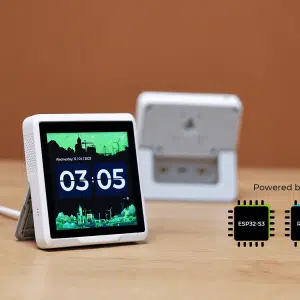

SenseCAP Indicator is a 4-inch touch screen driven by ESP32 and RP2040 dual-MCU and supports Wi-Fi/BLE/LoRa® communication.
The board comes with Type–C and Grove interfaces, supports ADC and IIC transmission protocols, and can easily connect to other peripherals with rich GPIOs.
SenseCAP Indicator is a fully open-source powerful IoT development platform for developers. One-stop ODM Fusion service is also available for customization and quick scale-up.
SenseCAP Indicator native firmware enables you to use it as a desktop air quality detector or you could customize one of your own styles. There are built-in tVOCs and CO2 sensors, and a Grove TH sensor is provided to connect externally to reduce heat interference to get more accurate temperature and humidity results.
The embedded SX1262 LoRa® module enables you to build the LoRa® application and connect your local LoRa® sensors to the Cloud via Wi-Fi. For example, you could build a LoRa® hub device to connect your LoRa® sensors to your smart home ecosystem to implement Matter over Wi-Fi. In this way, the LoRa® devices could be connected to the Matter ecosystem via Wi-Fi, without the need to buy a new Matter-compatible device.
The software of SenseCAP Indicator is completely open-source. Developers could create various IoT applications such as:
It can also be used to develop various exciting applications integrating with third-party platforms, such as AWS / ChatGPT / Matter / NodeRED / IoTex …
SenseCAP Indicator is an interactive display and control terminal for various IoT applications. It provides developers with a powerful and interface-rich development platform powered by ESP32-S3 and RP2040 dual-MCU.
Don’t wait anymore, start your wonderful development journey with SenseCAP Indicator now!
The SenseCAP Indicator series offers four different versions: D1, D1S, D1L, and D1Pro. Each version is designed to meet different application needs without any extra cost from unnecessary hardware. Here are the differences between the versions:
| Screen | 3.95 Inch, Capacitive RGB Touch Screen | |
| Screen Resolution | 480 x 480 pixels | |
| Power Supply | 5V DC, 1A | |
| Battery | N/A | |
| Processor | ESP32-S3: Xtensa® dual-core 32-bit LX7 microprocessor, up to 240MHz
RP2040: Dual ARM Cortex-M0+ up to 133MHz |
|
| Flash | ESP32S3: 8MB
RP2040: 2MB |
|
| External Storage | Support up to 32GB Micro SD Card (not included) | |
| Wi-Fi | 802.11b/g/n, 2.4GHz | |
| Bluetooth | Bluetooth 5.0 LE | |
| LoRa®(SX1262) | LoRa®WAN/(G)FSK, 21dBm Max Transmitted Power Sensitivity/-136dBm@SF12 BW=125KHz RX Sensitivity, Up to 5km (depending on gateway antenna and environments) | |
| Sensors(Optional) | Built-in CO2 (SCD41) | Range: 0-40000ppm
Accuracy: 400ppm – 5000ppm ±(50ppm+5% of reading) |
| Built-in TVOC (SGP40) | Range: 1-500 VOC Index Points | |
| External Temperature and Humidity Sensor | Range: -40 ~ + 85 ℃/± 0.3 ℃; 0 ~ 100% RH/± 2% RH (25 ℃) | |
| Buzzer | MLT-8530, Resonant Frequency：2700Hz | |
| SenseCAP Indicator | x1 |
| USB Type-C Cable (1m) | x1 |
| Grove AHT20 TH Sensor (For D1S and D1Pro version) | x1 |
| HSCODE | 8517180050 |
| USHSCODE | 8543708800 |
| UPC | |
| EUHSCODE | 8543709099 |
| COO | CHINA |
Only logged in customers who have purchased this product may leave a review.
Evan Arachikavitz (verified owner) –
This is a good quality little display. While its possible to use it under factory settings and set it up with a few sensors, I completely wiped the ESP32S3 board and wrote up a new program for it. I have 3 screens that i can swipe between, each showing different data pulled from APIs from our Siemens Connect Box gateway. The display has great clarity and the touch screen is very responsive. I’ll likely get a few more for use as quick metric displays throughout the plant.
