Price range: $29.00 through $40.00

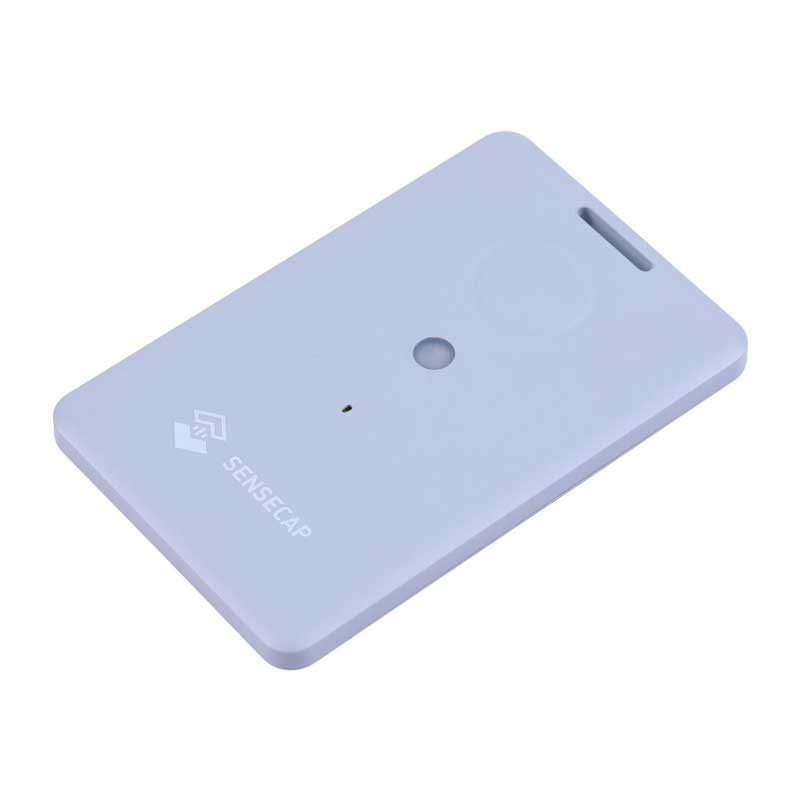

SenseCAP T1000 LoRaWAN Tracker for Indoor and Outdoor Positioning
The SenseCAP T1000 is a card-size LoRaWAN® tracker that utilizes GNSS/Wi-Fi/Bluetooth for precise indoor & outdoor location tracking. It assures reliable tracking across various applications.
Note:
Many trackers claim to track anything anywhere but often fall short.
For trackers with BLE connectivity, have a limited transmission range. Imagine being downstairs and trying to track your wallet on the second floor – a typical BLE tracker might be unable to help.
4G/LTE trackers, while offering better coverage, can’t easily expand to wilder areas like mountain trails, mining sites or ski resort, not to mention the high transmission costs for commercial use.
So, what’s the answer? You want an extensive range, ease-of-use, low data fees. We know it is difficult to pick, and you want them all!
This is where the SenseCAP T1000 shines. As a LoRaWAN tracker, it has all the features you want, and more! It delivers precise positioning across vast areas, whether indoors or outdoors, even in remote places. It stands out as a truly reliable tracking solution.
Feature 1: Seamless indoor and outdoor positioning
T1000 effectively employs BLE and Wi-Fi for pinpoint indoor positioning and utilizes GNSS technologies, including GPS, Beidou, Galileo, and GLONASS for precise outdoor tracking.
Feature 2: Credit card size can fit in any application
At a mere 6.5mm thick, this small and slim tracker can easily slip into envelope-like spaces.
Feature 3: Emergency Report
The panic button switches the tracker to SOS mode, which sends data frequently to your platform and triggers the built-in buzzer to alert people nearby that an emergency has occurred.
Feature 4: Cheaper in data transmission fee
Using LoRaWAN, the communication costs are significantly lower compared to cellular networks like 4G, LTE Cat-M, and LTE Cat-1. This greatly lowers the barrier to entry for mass commercial use. For instance, with the same amount of data, using a SIM card on other networks could cost up to $3 while with LoRaWAN it is only $0.05.
Feature 5: Months of battery after a single magnetic charge
With magnetic charge design to enhance water resistance. (ps: Battery life depends upload interval, work mode, etc., please refer to datasheet)
Feature 6: Never lose track of what was happening – Store data offline when out of connection
Feature 7: Built to endure harsh environments
T1000 is with industrial-grade design, equipped with IP65 waterproof protection. It’s built to endure harsh environments, with a working temperature ranging from -20℃ to 60℃ (-4 ℉ to 140℉).
Thus, if you’re on the hunt for a simple, cost-effective tracking solution, SenseCAP T1000 is an optimal choice, especially in routine areas where activities or movements occur on a regular, predictable basis. This could include a designated route for delivery vehicles follow, a university campus where students move between classes, or a resort where guests visit certain attractions regularly.
T1000 is truly a locator that keeps you connected to the people and things most important to you. Whether they’re in a building, spread across a campus, dotted around a city, or placed in the wild, the T1000 has got you covered!
Your bag, motorbike, personal belongings? Sure!
Used in LoRaWAN network. T1000 tracker is a LoRaWAN device, which means it operates under the LoRaWAN network. LoRaWAN network is available worldwide, with services provided in over 160 countries, making LoRaWAN networks widely accessible.
There are over 150 LoRaWAN network operators globally. Some of the notable ones include: Actility, Everynet, Helium, SenRa, The Things Network.
Facing poor signal in your area?
If your area suffers from poor signal, just simply install a LoRaWAN gateway – it’s as simple as setting up a Wi-Fi router. The beauty of LoRa lies in its flexibility and ease of network expansion. This reliable solution is also cost-effective. For instance, the SenseCAP M2 Indoor LoRaWAN Gateway, priced at just $99, can extend your coverage up to 10km!
Only 3 steps to get the location on SenseCAP Mate App.
SenseCAP Mate App provides an easy hands-on experience with T1000, you can set up and configure the tracker’s parameters, like changing data uplink interval, and viewing the latest and historical locations.
Already have your own tracking platform and system?
Not a problem! Openness is the thing we always keep in mind. You can access our open API to streamline data to your platform, or you can easily integrate the T1000 into your existing system.
Here is our partner ecosystem from chip provider, network providers, and platforms.
Snap Hook and Nylon Lanyard are prepared for quick use.
Seeed provides one-stop R&D services for fast development from concept to production, contact [email protected] for custom LoRaWAN tracker/badge/tag design.
We deeply value the developer community and believe that open source can lower barriers to innovation and accelerate ideas to prototypes. For those passionate about building your own trackers, we have prepared an open-source development kit – the Wio Tracker 1110 Dev Kit.
Backhaul
LoRaWAN® (v1.0.4 Class A)
Bluetooth
Bluetooth v5.1, setting via App
LoRaWAN Channel Plan
IN865/EU868/US915/AU915/AS923/KR920/RU864
Temperature
Range: -20 to 60℃;
Accuracy: ± 1℃ (min ±0.5℃, max ±1℃)
Resolution: 0.1℃
Light
0 to 100% (0% is dark, 100% is brightest)
3-Axis Accelerometer
3-Axis Accelerometer to detect movement
LED and Buzzer
1*LED and 1* buzzer to indicate status
Button
1* Button to operate and trigger events (SOS)
Antenna
Internal (GNSS/LoRa/Wi-Fi/BLE)
Communication Distance
2 to 5km (depending on gateway antenna, installation, and environments)
IP Rating
IP65
Dimensions
85 * 55 * 6.5 mm
Device Weight
32g
Operating Temperature
-20℃ to +60℃
Operating Humidity
5% – 95% (No condensation)
Certification
CE /FCC /TELEC /RoHS /REACH
GNSS Constellation
T1000-A/B: GPS/GLONASS/Galileo/BeiDou/QZSS
GNSS Sensitivity
-145dBm cold start / -160 dBm Tracking
GNSS Location Accuracy
2.5m CEP 50%
Wi-Fi Positioning
Passive scanning, uploads the scanned 4 MAC addresses
Bluetooth Positioning
uploads the scanned 3 best signal MAC addresses of Beacon
Data Cache
Cache 1000 data when there is no LoRaWAN network
Battey Capacity
Rechargeable lithium battery, 700mAh
Battery Life Estimates
4 months on a single charge (uplink every 1 hour, only GNSS data)
Battery Life Monitoring
Periodic uplink battery level
Charge Cable
(Adapter not included)
USB magnetic charging cable, 1 meter
Power Input Voltage
4.7 to 5.5V DC
Charging Temperature Limit
0 to +45℃ (Beyond the temperature range, the charge will be limited, and the LED will blink quickly)
