From: $86.00
B05-125-200
|
Measuring Range |
-40 °C ~ 125 °C |
|
Measuring Accuracy |
± 0.5°C (-40°C~40°C), ± 1°C (40°C~125°C) |
|
Measuring Resolution |
0.1°C |
|
Probe Type |
Straight tube, 304 Stainless Steel |
|
Probe Length |
Φ4*50 mm |
|
Cable Length |
2 m |
|
Cable Material |
PVC |
|
Cable Operating Temperature |
-30 °C~105 °C |
|
Ingress Protection |
IP67* |
AF10-125-150
|
Measuring Range |
-40 °C ~125 °C |
|
Measuring Accuracy |
± 0.4°C |
|
Measuring Resolution |
0.1°C |
|
Probe Type |
Needle, Food Grade 316 Stainless Steel |
|
Probe Length |
Φ4*100 mm |
|
Cable Length |
1.5 m |
|
Cable Material |
Food Grade Silicone |
|
Cable Operating Temperature |
-60 °C~250 °C |
|
Ingress Protection |
IP67* |

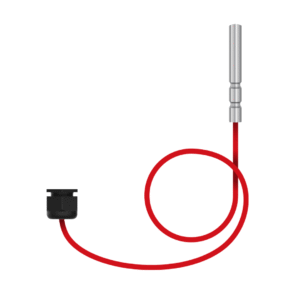

A03-050-150
|
Measuring Range |
-200 °C ~ 50 °C |
|
Measuring Accuracy |
± 0.5°C (-175°C~50°C), ± 0.55°C(-200°C~-175°C) |
|
Measuring Resolution |
0.1°C |
|
Probe Type |
Straight tube, 304 Stainless Steel |
|
Probe Length |
Φ4*30 mm |
|
Cable Length |
1.5 m |
|
Cable Material |
Teflon |
|
Cable Operating Temperature |
-200 °C~290 °C |
|
Ingress Protection |
IP67 |
A05-500-150
|
Measuring Range |
-50 °C ~ 500 °C |
|
Measuring Accuracy |
± 0.5°C |
|
Measuring Resolution |
0.1°C |
|
Probe Type |
Straight tube, 304 Stainless Steel |
|
Probe Length |
Φ4*30 mm |
|
Cable Length |
1.5 m |
|
Cable Material |
Teflon |
|
Cable Operating Temperature |
-200 °C~290 °C |
|
Ingress Protection |
IP30 |
TS301 LoRaWAN temperature sensor
TempSecure: Safeguarding Freshness, Ensuring Wellness
TS301/TS302, the LoRaWAN® temperature sensor with an LCD display. This device seamlessly connects to high-accuracy PT100 temperature probes and door magnetic sensors. Ideal for the food processing, pharmaceutical storage, and cold chain industries.
In the food industry, precise temperature monitoring is vital for food safety. TS301/TS302 LoRaWAN® Temperature Sensor meets HACCP standards, ensuring food quality and safety.
TS301/TS302 LoRaWAN® Temperature Sensor replaces manual record-keeping, reducing errors and paperwork by automating data exports and reports.
It allows easy export of data as encrypted document in PDF format via USB, meeting the 21 CFR Part 11B requirements for ERES (Electronic Records; Electronic Signatures) compliance.
Users are able to receive immediate alerts for any potential threats, such as temperature spikes or open doors. Data is swiftly transmitted to the cloud for easy access and retrieval, reducing inventory losses in refrigerators and freezers.
*It is advisable to place the device outside of the refrigerator.
TS301/TS302 boasts a high IP65 dust and waterproof rating, making it suitable for various applications. Furthermore, the external USB interface is protected by secure dust caps.
Switching On/Off & Configuring the Devices Wirelessly
Install the
Milesight ToolBox
Enable NFC and run ToolBox,
then attach your phone to the device
Verify the password
and start configuring
Wireless Transmission
Technology LoRaWAN®
Frequency CN470/IN865/RU864/EU868/US915/AU915/KR920/AS923-1&2&3&4
Tx Power 16dBm (868MHz)/22dBm (915MHz)/19dBm (470MHz)
Sensitivity -137dBm @300bps
Mode OTAA/ABP Class A
Sensor Connector
Connector Type 5-pin M12 A-Coded Male Connector
Connector Number TS301: 1 × Connector for PT100 Probe or Magnet Switch Sensor
TS302: 2 × Connectors for two PT100 Probes or PT100 + Magnet Switch Sensor
PT100 Connection 3-wire Connection
Display
Display LCD Segment Code Screen
Viewing Direction 12 O’clock
Others
Button 1 × External Power Button + 1 × Internal Reset Button
LED Indicator 1 × Status Indicator (Internal)
Configuration Mobile App (via NFC) or PC software (via USB Type-C)
Data Logging 10, 000 measurements and supports to export as CSV or PDF file
Physical Characteristics
Power Supply 2 × 4000 mAh ER18505 Li-SOCL2 Batteries or Type-C USB (5V/1A)
Operating Temperature -30°C to +70°C
Relative Humidity 0% to 95% (non-condensing)
Ingress Protection IP65
Weight 175 g (TS301), 185 g (TS302)
Dimension 109.35 × 75 × 20 mm (4.31 × 2.95 × 0.79 in)
Installation Wall Screw Mounting, Magnetic Mounting (Opt.）
