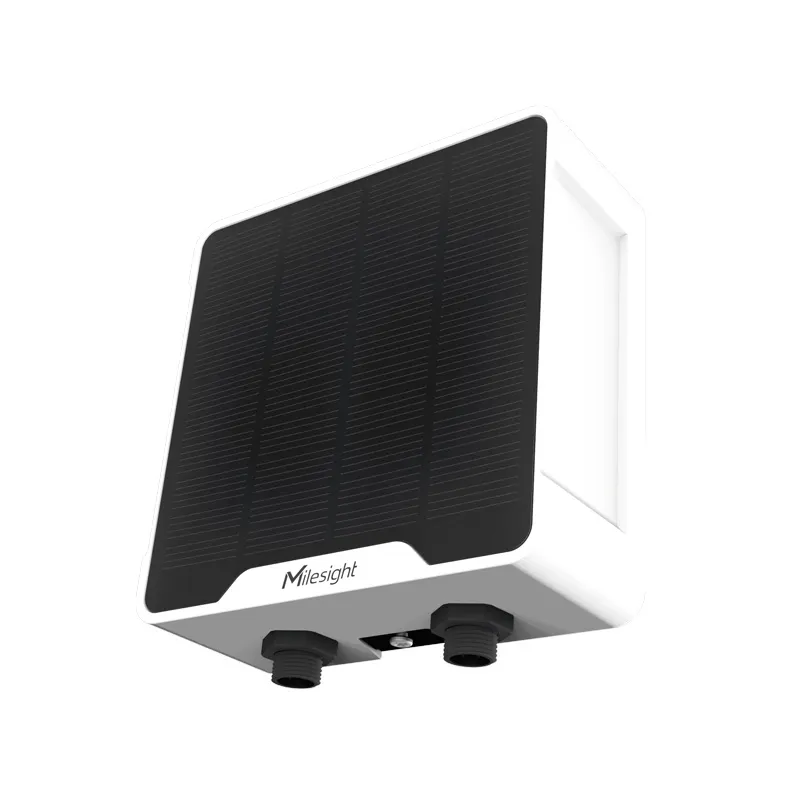

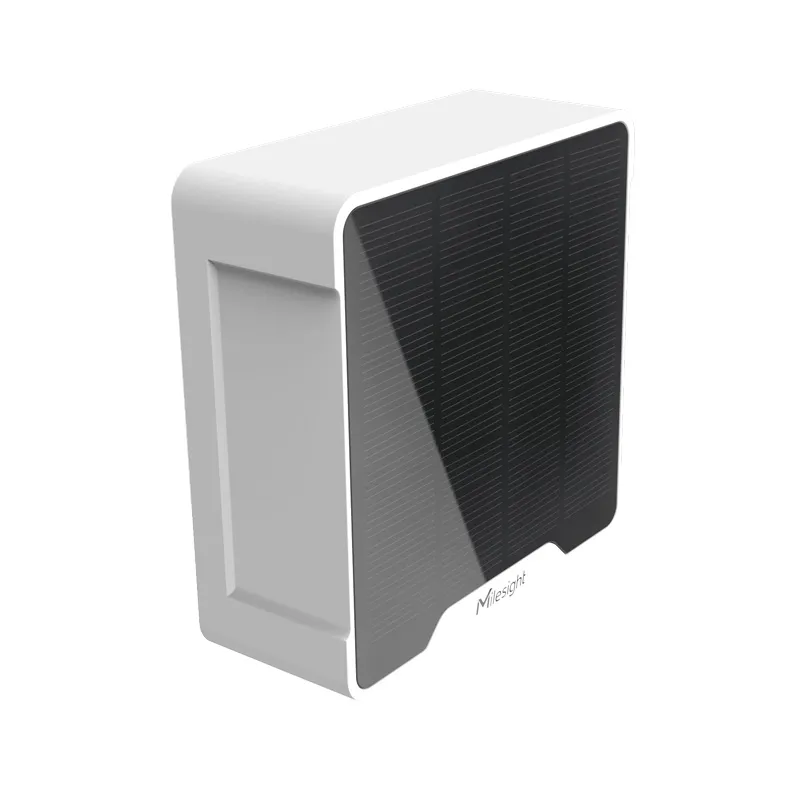

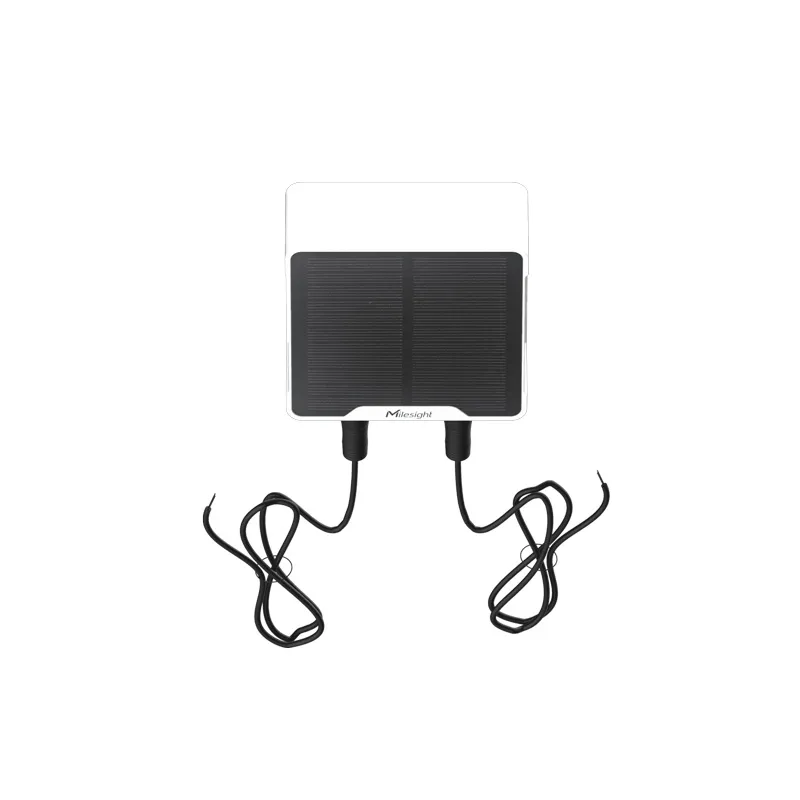

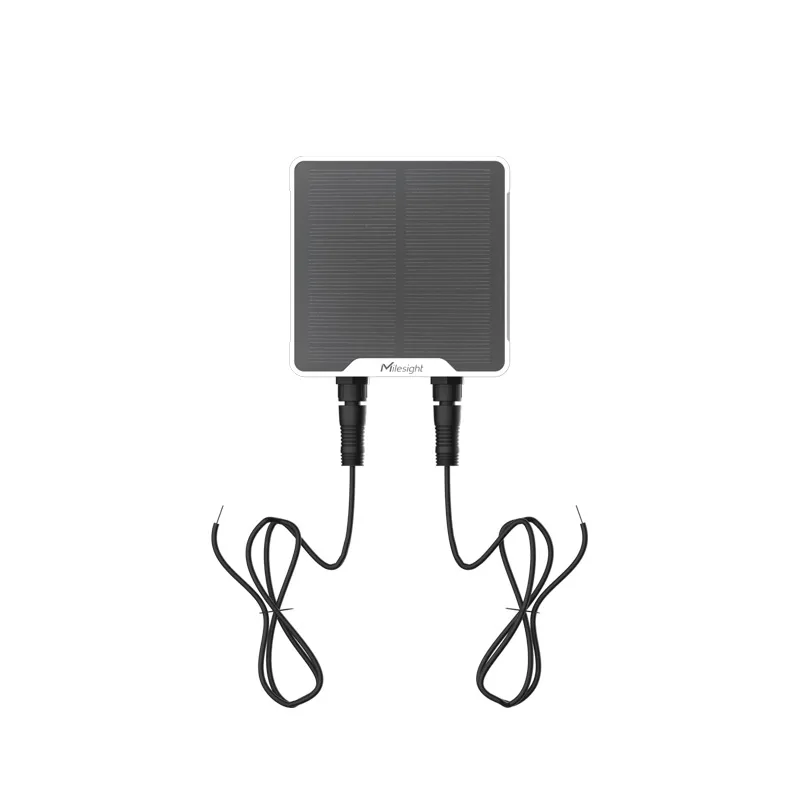

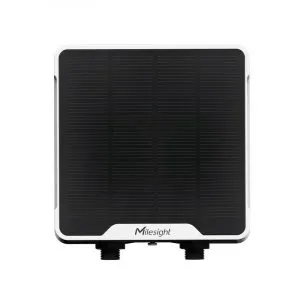

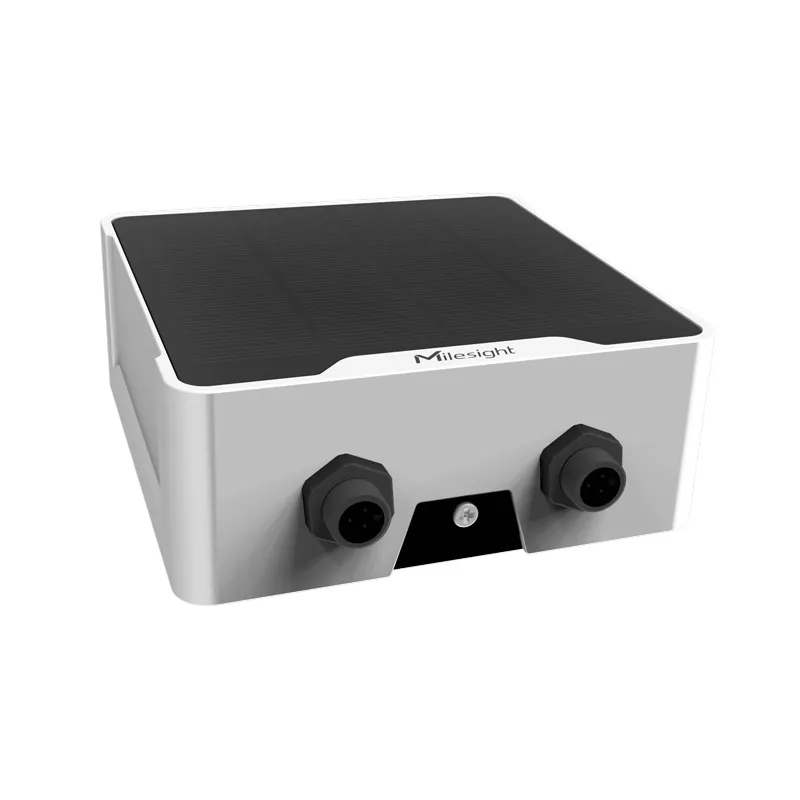

LoRaWAN Solenoid Valve Controller, UC511 LoRaWAN Solenoid Valve Controller is a device used to remotely control DC latching solenoids of the valve. It contains 2 solenoid interfaces and 2 GPIO interfaces, which can be easily controlled locally or remotely.
Besides ultra-low-power LoRaWAN® technology, the UC51x series also provides a built-in solar panel and high-capacity battery power supply for long-term operation. For outdoor applications, it equips with an IP67-rated enclosure and M12 connectors to protect from water and dust in harsh environments.
LoRaWAN Solenoid Valve Controller
LoRaWAN® Solenoid Valve Controller
- Solenoid Valve Control
- Water Flow Monitoring
- IP67 Waterproof
- Long Battery Life
Water Flow Monitoring
2 x digital input for connecting water meter
- Programmable Unit per Pulse
- Enable Precise Irrigation

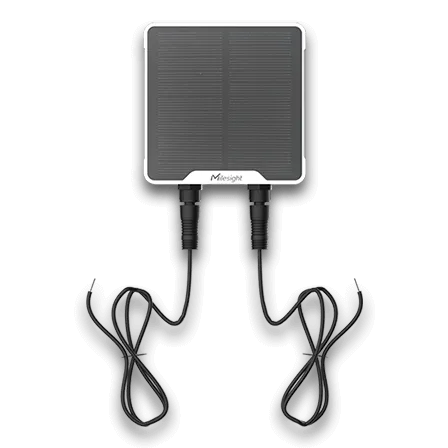

IP67 Waterproof
Equipped with IP67 rated enclosure to satisfy the outdoors all-weather long time operation.
Easy Configuration via NFC
1st Step
Install the Milesight Toolbox.
2nd Step
Enable NFC and run Toolbox,
Attach your phone to the device
3rd Step
Verify the password and start configuring.
Features
- Compatible with standard DC latching solenoids
- OPEN/CLOSE control by mobile App locally or commands remotely
- Two GPIO interfaces for flow monitoring or valve status monitoring
- Transmission distance up to 15 km with line of sight

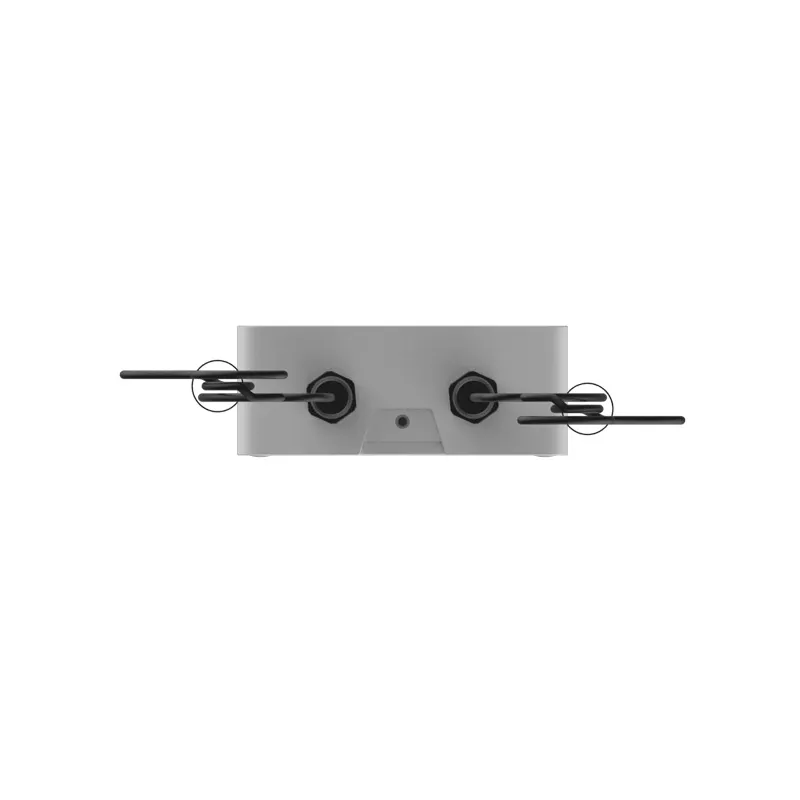

- Waterproof design including IP67 case and M12 connectors
- Solar powered and built-in chargeable battery
- Quick wireless configuration via NFC
- Time and flow control via Milesight IoT
Specifications
Wireless Transmission
Technology: LoRaWAN®
Frequency: CN470/IN865/EU868/RU864/US915/AU915/KR920/AS923-1&2&3&4
Tx Power: 16dBm (868 MHz)/20dBm (915 MHz)/19dBm (470 MHz)
Sensitivity: -137dBm @300bps
Working Mode
UC511: OTAA/ABP Class A, Class B, Class C, Class C to B
UC512: OTAA/ABP Class A, Class B
Data Interfaces
Interface Type: M12 A-Coded Male
Solenoid Interface
Ports: 2 × Solenoid Interfaces, 5/9/12 VDC Switchable
Solenoid Support: 2 Wires Latching Solenoids
GPIO Interface
Ports: 2 × GPIO Interfaces, Dry Contact
Work Mode: Digital Input, Pulse Counter
Operation
Power On & Off
Mobile App (via NFC), PC Software (via USB Type-C), Power Button (Internal), Cable Connection
Configuration: Mobile App(via NFC) or PC software (via USB Type-C)
Physical Characteristics
Power Supply
UC511: Solar Powered (5V, 1.6W) + 2 × 2550 mAh Chargeable Batteries
UC512: 3 × 9000 mAh Replaceable Li-SOCl2 Batteries
Operating Temperature: -20°C to +60°C
Ingress Protection: IP67
Dimension: 116 × 116 × 45.5 mm (4.56 × 4.56 × 1.79 in)

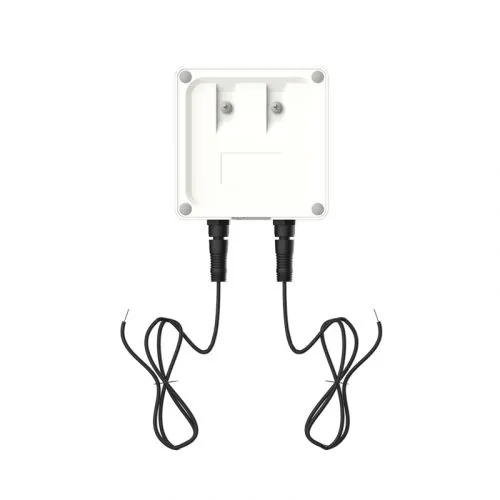

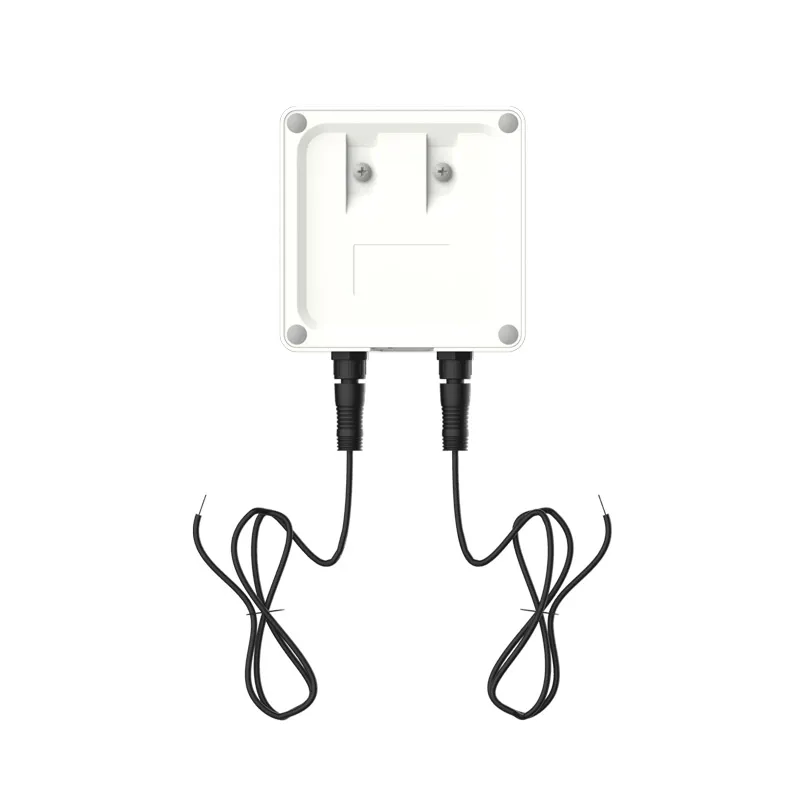

Installation: Wall or Pole Mounting
Approvals
Regulatory: CE, FCC, RoH
