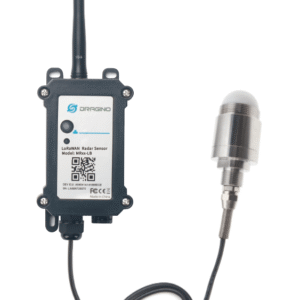

Dragino MR-XX-LB/LS LoRaWAN Microwave Radar Distance Sensor

The Dragino MR-XX-LB/LS is a LoRaWAN Microwave Radar distance sensor. It uses 80Ghz Microwave to detect the distance between sensor and different objects. Compare vs ultrasonic or Lidar measurement method, Microwave Radar is more reliable for condensation / dusty environment. It can sense correct distance even there is water or thick dust on top of the sensor.

The MR-XX-LB/LS can be applied to scenarios such as horizontal distance measurement, parking management system, object proximity and presence detection, intelligent trash can management system, robot obstacle avoidance, automatic control, sewer, etc.

The LoRa wireless technology used in MR-XX-LB/LS allows device to send data and reach extremely long ranges at low data-rates. It provides ultra-long range spread spectrum communication and high interference immunity whilst minimizing current consumption.

MR-XX-LB/LS supports BLE configure and wireless OTA update which make user easy to use.

MR-XX-LB/LS is powered by 8500mAh Li-SOCI2 battery or solar powered + Li-ion battery , it is designed for long term use up to 5 years.

• LoRaWAN 1.0.3 Class A
• Ultra-low power consumption
• 80GHz Microwave Radar for distance detection
• Measure Range : 3m: 200 ~ 3000mm; 12m: 200 ~ 12000mm; 25m: 200 ~ 25000mm
• Accuracy: ± 20mm
• Resolution: 1mm
• Measurement Angle : 7.6 degrees horizontal and 7.6 degrees vertical
• Monitor Battery Level
• Support Bluetooth v5.1 and LoRaWAN remote configure
• Support wireless OTA update firmware
• AT Commands to change parameters
• Uplink on periodically
• 8500mAh Li/SOCl2 Battery (MR-XX-LB)
• Solar panel + 3000mAh Li-ion battery (MR-XX-LS)

Applications:

• Horizontal distance measurement
• Liquid level measurement
• Parking management system
• Object proximity and presence detection
• Intelligent trash can management system
• Robot obstacle avoidance
• Automatic control
• Sewer
• Bottom water level monitoring

Common DC Characteristics:

• Supply Voltage: Built-in Battery , 2.5v ~ 3.6v
• Operating Temperature: -40 ~ 85°C

Radar probe specification:

• Measuring Method: FMCW
• Frequency: 80 GHz
• Measure Range :3m: 200 ~ 3000mm; 12m: 200 ~ 12000mm; 25m: 200 ~ 25000mm
• Accuracy: ± 20mm
• Resolution: 1mm
• Measurement Angle : 7.6 degrees horizontal and 7.6 degrees vertical

LoRa Spec:

• Frequency Range,  Band 1 (HF): 862 ~ 1020 Mhz
• Max +22 dBm constant RF output vs.
• RX sensitivity: down to -139 dBm.
• Excellent blocking immunity

Battery:

• Li/SOCI2 un-chargeable battery
• Capacity: 8500mAh
• Self-Discharge: <1% / Year @ 25°C
• Max continuously current: 130mA
• Max boost current: 2A, 1 second

Power Consumption:

• Sleep Mode: 5uA @ 3.3v
• LoRa Transmit Mode: 125mA @ 20dBm, 82mA @ 14dBm

Package Includes:

• 1 x MR-XX-LB/LS LoRaWAN Distance Detection Sensor

Dimensions and Weight:

• Package Dimension: 150 * 120 * 55 mm
• Weight : 220 g
