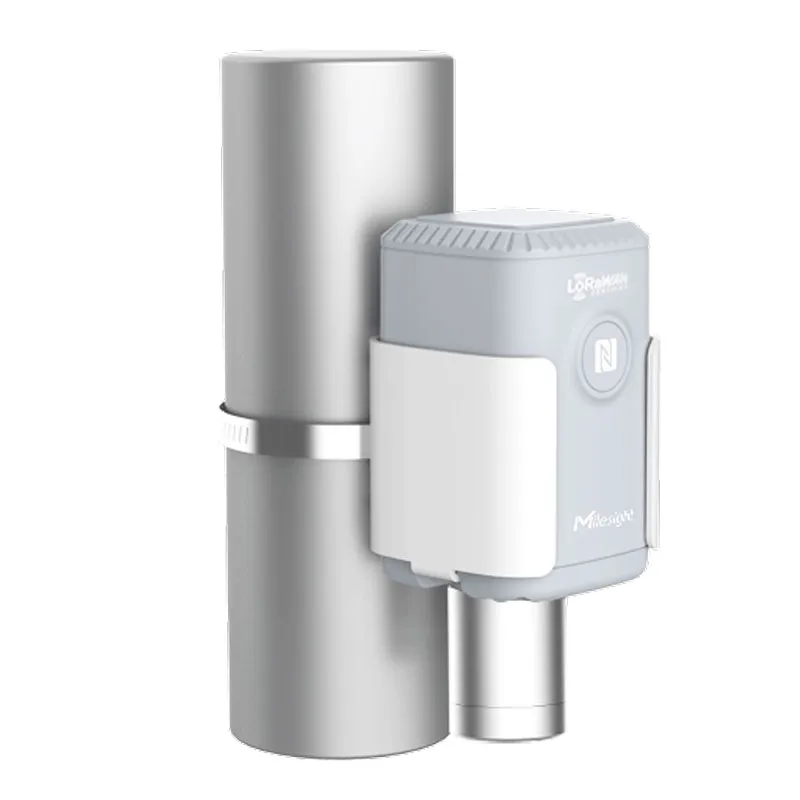

EM500-CO2 Carbon Dioxide Sensor
EM500-CO2 is designed for measuring CO2, temperature, humidity and barometric pressure in harsh environments and transmitting data using LoRaWAN® technology. With this low power consumption technology, EM500-CO2 can work up to 10 years with 19000 mAh battery. Combining with Milesight LoRaWAN® gateway and Milesight IoT Cloud solution, users can manage all sensor data remotely and visually. EM500-CO2 is widely used for applications like smart agriculture, smart city, forest fire detection, etc.
Smart Wine Cellar >>>
Carbon dioxide is a by-product produced during the fermentation of wine. Because the density of carbon dioxide is heavier than air, it is easy to overflow from the fermentation tank. When it falls on the ground of the winery, it will form fatal and undetectable potholes, which will bring great hidden danger to the safety of the operators.
Forest Fire Detection <<<
Nowadays, forest fires often cause serious threats to the environment and produce real emergency situations and natural disasters. Most of the times, when someone notices about the fire, it is too late because the fire has spread already. Thus, the enhancement of forest fire detection system by CO2 (carbon dioxide) monitoring can be evaluated.
LoRaWAN Wireless Transmission
Ultra-low power consumption and easy deployment
Built-in 19000 mAh high-capacity battery can be used for 10 years.
Simple and Easy to Use
Configure Your Device via NFC
Features
- Integrated with multiple sensors like CO2, temperature, humidity, etc.
- Ultra-wide-distance transmission up to line of sight of 10km
- IP65 waterproof enclosure for harsh environment applications
- Built-in 19000 mAh replaceable battery and work for 10 years without replacement
- Equipped with NFC for easy configuration
- Compliant with standard LoRaWAN® gateways and network servers
- Quick and easy management with Milesight IoT Cloud solution
Specifications
LoRaWAN®
Frequency CN470/RU864/IN865/EU868/US915/AU915/KR920/AS923
Tx Power 16dBm(868)/20dBm(915)/19dBm(470)
Sensitivity -137dBm @300bps
Mode OTAA/ABP Class A
Measurement (CO2)
(0 to 50°C)
Range 400 – 5000 ppm
Resolution 1 ppm
Accuracy ±30 ppm or ±3 % of reading
Physical Characteristics
Power Supply 19000 mAh Li-SOCl2
Operating Temperature -30°C to +70°C
Ingress Protection IP65
Dimension 156.1 × 71 × 69.5 mm
Mounting DIN rail, wall, pole mounting
