Milesight UG63 Mini LoRaWAN Gateway

Rated 5.00 out of 5 based on 1 customer rating

(1 customer review)

SKU: N/A Brand: Milesight

Price range: $165.00 through $220.00

8 Channels
Up to 2000 End-Nodes
Up to 2km Communication Range in Urban Areas
Compact Design
Blind Spot Coverage
Low Power Consumption
High Compatibility
Remote Configuration and Management

Interface

Clear

Add to wishlist

UG63 Mini LoRaWAN Gateway is an 8-channel lightweight indoor LoRaWAN® gateway. Adopting the SX1302 LoRa chip and high-performance CPU, UG63 supports connection with more than 2000 nodes and can cover 15 km in sight and about 2 km in an urbanized environment. With its compact size, it is ideally suited for offices, parking lots, campuses, hotels, exhibition centers, and many other indoor areas. It also applies to provide coverage for indoor blind spots.

UG63 Mini LoRaWAN Gateway has both integrated mainstream network servers (such as TTN, ChirpStack, AWS IoT Core for LoRaWAN and etc.)

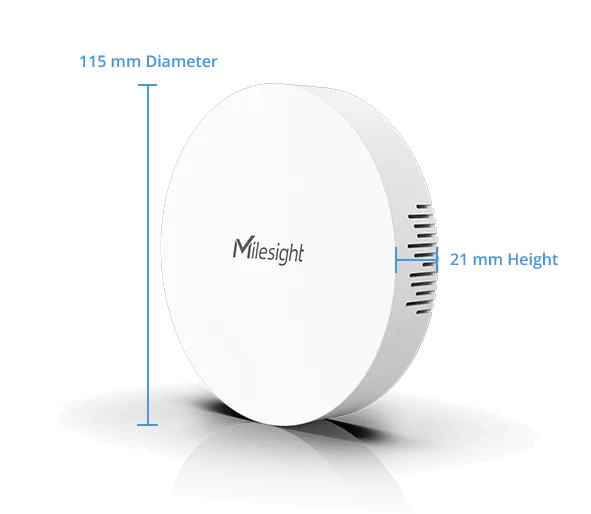

Eye-Catching Design

Sticking to minimalism, the UG63 Mini LoRaWAN^® Gateway is as small as a disk. Coupled with an elegant and aesthetic appearance, UG63 is in perfect accord with the office surroundings.

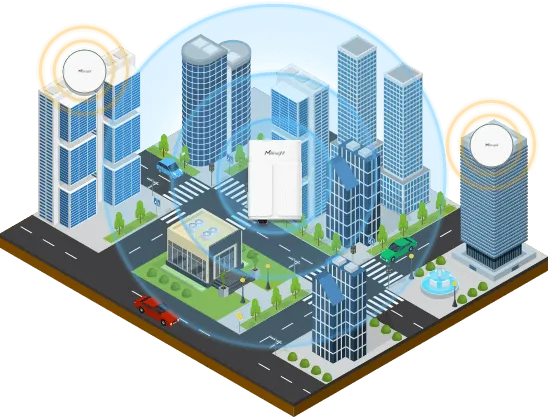

Blind Spot Coverage

Besides the general features of a LoRaWAN^® gateway, the Gateway Fleet makes UG63 particularly suited for providing network coverage for indoor blind spots.

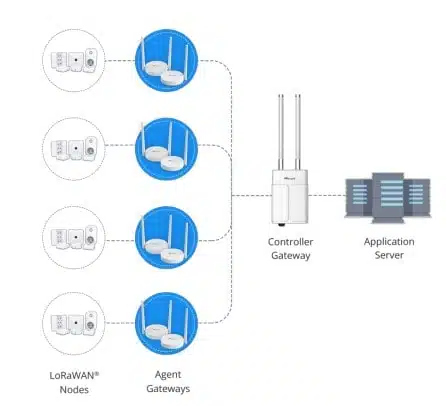

Gateway Fleet

The Gateway Fleet feature enables multiple agent gateways transmitting received data to one controller gateway, which facilitates the deployment and management of LoRaWAN^® network.

Features

Equip with SX1302 chip, handing a higher amount of traffic with lower consumption
8 half-duplex channels for more than 2000 end-nodes connections
Small in size for easy carrying & deployment
Desktop, wall or ceiling mounting support
Multi backhaul backups with Ethernet and Cellular (4G)
Cover the blind spot of LoRaWAN® network by transmitting data to Milesight UG56/UG65/UG67 controller gateway
High cost performance, indoor gateway suitable for small applications
Milesight DeviceHub2.0 & IoT Developer Platform provide easy and centralized management
of remote devices
Compatible with mainstream network servers like The Things Industries, ChirpStack, AWS IoT Core for LoRaWAN® and etc.

Specifications

Hardware System

CPU: Dual-core 240MHz, 32-bit Xtensa® LX7

Memory: 8 MB PSRAM

LoRaWAN

Antenna: 1 × External Antenna
Channel: 8 (Half-duplex)
Frequency Band: CN470/IN865/EU868/RU864/US915/AU915/KR920/AS923-1&2&3&4
Sensitivity: -140dBm Sensitivity @292bps
Output Power :27dBm Max
Protocol: V1.0 Class A/Class B/Class C and V1.0.2 Class A/Class B/Class C

Cellular Interface (Optional)

Network: 4G LTE (CAT 1)/GSM
Antenna: 1 x External Antenna
Cellular Band:
L08GL (Global except North America):
LTE-FDD: B1/2/3/4/5/7/8/12/13/17/18/19/20/25/26/28/66
LTE-TDD: B34/38/39/40/41;
GSM: B2/3/5/8
L09NA (North America):
LTE-FDD: B2/4/5/12/13/66
SIM Slots: 1 (Micro SIM-3FF)

Ethernet Interface

Port: 1 × RJ45 WAN Port
Physical Layer: 10/100 Base-T (IEEE 802.3)
Data Rate: 10/100 Mbps (Auto-Sensing)
Interface: Auto MDI/MDIX
Mode: Full or Half Duplex (Auto-Sensing)

Wi-Fi

Standards: IEEE 802.11b/g/n, 2.4 GHz
Mode: AP Mode (Device Configuration Only)

Others

Reset Button: 1 × Reset Button
Console Port: 1 × USB 2.0 (Type-C) for Power Supply and Console
LED Indicators: 1 × SYS, 1 × LTE
Built-in: Watchdog, Timer

Software

Network Protocols: PPPoE, SNMP v1/v2c/v3, TCP, UDP, DHCP, DDNS, HTTP, HTTPS, DNS, ARP, SNTP, Telnet, SSH, MQTT, etc.
VPN Tunnel: OpenVPN/IPsec/PPTP/L2TP/GRE/DMVPN
Management: Web, CLI, DeviceHub, Milesight IoT Cloud

Power Supply and Consumption

Power Input:
1. 5V by Type-C Port
2. 5~12V DC by 3.5mm 2-pin Terminal Block

3. 802.3af standard PoE input by (Optional) PoE Splitter

Power Consumption:

Typical 1.3W, Max 3.1 W

Physical Characteristics

Ingress Protection: IP30
Dimensions: Ф 115 x 21 mm (Ф 4.52 x 0.83 in) (Antenna Excluded)
Color & Material: White, PC + ABS
Installation Desktop, Wall or Ceiling Mounting

Environmental

Operating Temperature: -20°C to +50°C (-4℉ to +122℉)
Storage Temperature: -40°C to +85°C (-40℉ to +185℉)
Ethernet Isolation: 1.5 kV RMS
Relative Humidity: 0% to 95% (non-condensing) at 25°C/77℉

Approvals

Regulatory: CE, FCC
Environmental: RoHS

Resources

Datasheet

Gateway User Guide

Reviews (1)

5.00

Rated 5.00 out of 5 based on 1 customer rating

Based on 1 reviews

Rated 5 out of 5 based on 1 customer rating

Rated 4 out of 5

Rated 3 out of 5

Rated 2 out of 5

Rated 1 out of 5

1 review for Milesight UG63 Mini LoRaWAN Gateway

Evan Arachikavitz (verified owner) – 9 months ago

Rated 5 out of 5
I used this device in a small test application and so far its working really well. As with all Milesight products, the configuration user interface is very easy to use. I am using mqtt packet forwarding to a raspberry pi zero running ChirpStack OS and its seamless. Although this gateway has its own application server built in, its very simple and lacks some features of a full network server like ChirpStack. I have set up a few LoRaWAN devices so far and the user interface makes it very easy.
