If a LoRaWAN network shows acceptable RSSI but still experiences poor SNR or packet loss, RF interference may be one possible cause. The most effective troubleshooting process is to verify the symptoms, review channel-level performance, scan the operating band, reduce unnecessary airtime, and then review gateway placement and RF hardware. Configuration errors, coverage limitations, and hardware issues should also be ruled out before interference is confirmed.

Essentially,

• Start with evidence. Packet loss concentrated on specific channels may indicate interference, but it can also result from an incorrect channel mask, gateway configuration, antenna behavior, or receiver problems.
• Compare RSSI, SNR, packet-delivery rate, and channel frequency over time. Strong RSSI combined with worsening SNR and elevated packet loss is a useful warning sign, but it does not confirm interference on its own.
• Scan the full 902–928 MHz band. Look for narrowband spikes, wideband noise, or repeating activity tied to packet loss times.
• Balance traffic across US915 channels. Bad channel masks can overload only part of the band.
• Reduce airtime. Lower spreading factor where links allow, use ADR for fixed devices, trim payloads, and avoid frequent reports.
• Stop synchronized uplinks. A random send offset can cut burst collisions when many devices report on the same clock.
• Fix the site. More antenna height can improve RSSI by 10–15 dB, and keeping about 60% of the first Fresnel zone clear helps cut blockage loss.
• Use the right RF hardware. Short coax runs, low-loss cable, and US915 band-pass filtering can help near LTE-heavy rooftops or shared towers.
• Add overlap where noise is local. Extra gateways can let nodes use lower SF and give packet redundancy.
• Lock it in with policy. Track RSSI, SNR, PER, and per-channel use, run RF sweeps monthly or quarterly, and log every RF change.

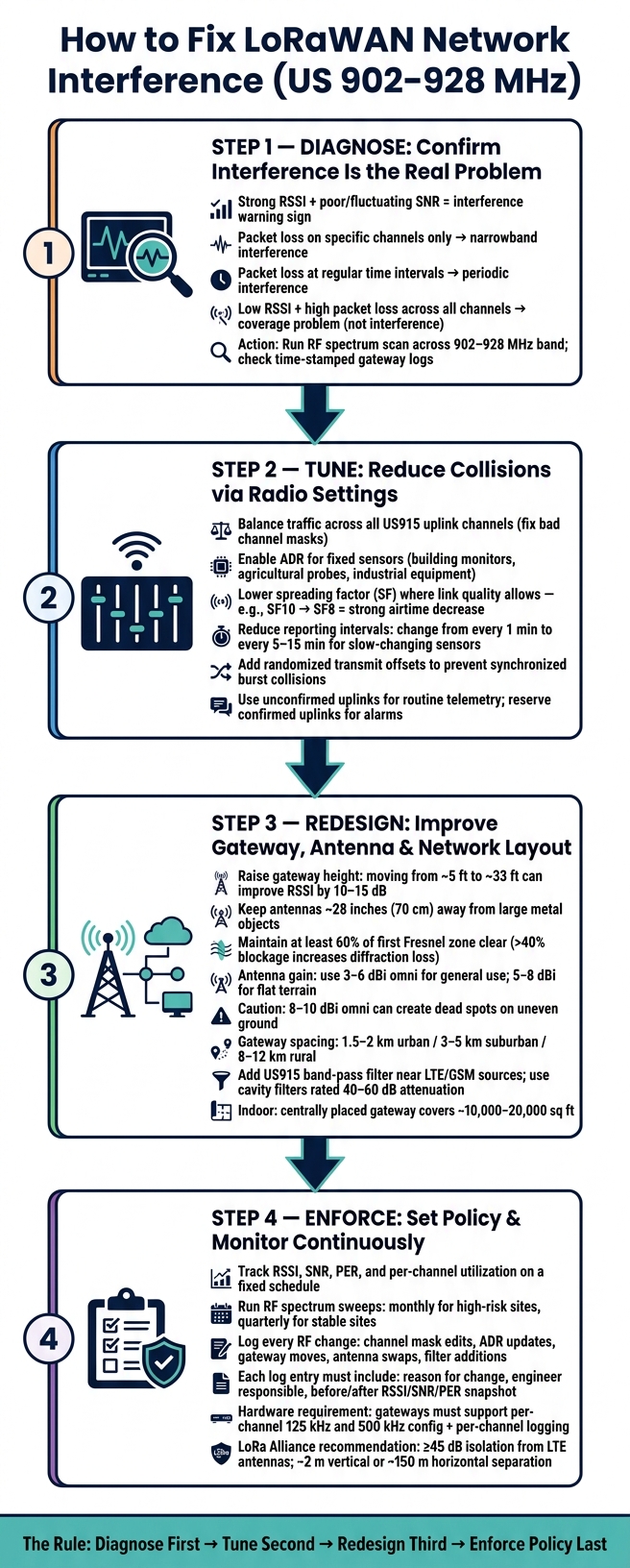

This is the short version: diagnose first, tune second, redesign third, and enforce the rules after that. If you skip the first step, you can waste time changing settings that do not fix the cause.

How to avoid LoRaWAN® network troubleshooting

sbb-itb-0e600ab

Step 1: Diagnose Whether Interference Is the Real Problem

Before you touch any radio settings, get proof first. This step helps you avoid making changes that don’t fix the actual issue.

Check Network Symptoms and Key Performance Metrics

Start by reviewing packet-delivery performance alongside RSSI, SNR, data rate, gateway reception, and channel frequency. Compare these values with the network’s past performance rather than relying on one universal threshold.

Weak coverage often produces lower RSSI and fewer gateway receptions as the device moves farther from coverage. Interference may appear as worsening SNR, channel-specific packet loss, or failures that follow a repeating time pattern. However, incorrect channel settings, antenna problems, and receiver faults can create similar symptoms.

Look for several indicators that point to the same cause before changing the network configuration.

Tell the Difference Between Coverage Problems and Interference

The LoRa Alliance recommends validating propagation modeling with real-world RSSI and SNR surveys rather than applying one-size-fits-all assumptions.

Run RF Scans and Time-Based Tests

Once the network data suggests an RF issue, compare it with spectrum measurements and time-stamped event logs. Scan the relevant portions of the 902–928 MHz band for narrowband signals, elevated broadband noise, or repeating transmissions.

Compare the timing and frequencies of the observed RF activity with packet failures. A matching pattern strengthens the interference diagnosis. If the patterns do not align, continue checking channel configuration, antennas, cabling, gateway hardware, and device behavior before concluding that outside interference is responsible.

Step 2: Reduce Collisions by Tuning LoRaWAN Radio Settings

Once you’ve confirmed interference is the issue, the next step is to make packet collisions happen less often. Start with channel use. Then cut airtime.

Verify the US915 Channel Plan and Balance Traffic

Confirm that the device channel mask matches the channel plan supported by the deployed gateways and network server. US915 defines 64 uplink channels at 125 kHz and eight uplink channels at 500 kHz, but the network must still be configured so devices transmit on channels that the gateway infrastructure is monitoring.

Review traffic by channel and identify whether uplinks are concentrated on only a small portion of the configured channel set. Correct mismatched channel masks or provisioning profiles before making other RF changes.

Distribute traffic across the available configured channels and avoid unnecessary payload length or high spreading factors. Longer airtime increases the period during which a transmission may overlap with other traffic.

Tune ADR, Spreading Factor, Bandwidth, and Transmit Power

Adaptive Data Rate (ADR) is one of the main tools for improving network efficiency. ADR allows the network server to adjust the device’s channel plan, data rate, transmit power, and retransmission settings based on observed RF conditions and gateway coverage.

ADR is especially useful for stationary devices such as:

• Building monitors
• Agricultural probes
• Utility meters
• Industrial equipment

Mobile and nomadic devices may also use ADR, but their management profiles should account for rapidly changing RF conditions.

The goal is to use the fastest reliable data rate and an appropriate transmit power while maintaining the required delivery performance. Do not reduce transmit power or spreading factor without confirming that sufficient link margin remains.

Transmit power should be adjusted based on delivery performance and available link margin. Lowering power does not shorten airtime or directly prevent packet collisions. Where packet delivery is insufficient, the LoRa Alliance capacity guidance recommends evaluating transmit power before increasing retransmissions or spreading factor.

Cut Unnecessary Airtime from Uplinks and Downlinks

When interference is local, one of the fastest fixes is to shorten how long devices occupy busy channels. For sensors that track slow-changing conditions like room temperature, soil moisture, or CO2 levels, changing the reporting interval from once per minute to every 5–15 minutes can sharply cut channel occupancy without hurting the app’s usefulness.

There’s another problem that sneaks up on people: synchronized transmissions. If a lot of devices report on the same clock schedule, they often collide in bursts. Add a randomized transmit offset so those periodic reports get spread out over time.

For message type, keep it simple. Choose confirmed or unconfirmed uplinks based on message criticality, reporting frequency, RF conditions, battery requirements, and available downlink capacity. Frequent routine telemetry generally benefits from unconfirmed uplinks because acknowledgments consume additional network capacity. Critical messages or difficult RF conditions may require a carefully managed confirmation, retry, or lightweight response strategy.

Step 3: Improve Gateway, Antenna, and Network Design

If radio tuning still doesn’t stop packet loss, the next place to look is the physical site. In many cases, gateway height, antenna type, and local RF noise matter just as much as the radio settings.

Place Gateways Away from Obstructions and Nearby RF Transmitters

Place gateways where they have strong RF visibility to the device population and adequate separation from large obstructions, metal structures, and high-power transmitting equipment.

Increasing antenna height can improve coverage by reducing barriers and improving Fresnel-zone clearance, but the result depends on terrain, building materials, antenna pattern, node height, cable loss, and the local noise environment. Avoid presenting a fixed height increase as a guaranteed RSSI improvement.

For indoor deployments, evaluate centrally located positions that provide suitable floor-to-floor coverage. For outdoor deployments, compare rooftop, pole, and tower locations through propagation modeling and field testing.

Gateway quantity, spacing, and mounting height should be determined through:

• RF propagation modeling
• Site surveys
• Pilot testing
• Required packet-delivery targets
• Device density and reporting frequency
• Building materials and terrain

Published range or square-footage estimates can support preliminary planning, but they should not be treated as coverage guarantees.

Select the Right Antenna, Cabling, and Filters

Select antenna gain and radiation pattern based on the site geometry, terrain, mounting height, and relative elevation of the devices.

Omnidirectional antennas are appropriate when devices surround the gateway. Directional or sector antennas may be more suitable when coverage is needed in a defined direction or when unwanted RF energy is concentrated elsewhere.

High-gain omnidirectional antennas have narrower vertical radiation patterns and may perform poorly when devices are located at significantly different elevations. More antenna gain does not automatically produce better coverage.

Keep coaxial cable runs as short as practical, use low-loss cable, and inspect connectors, grounding, and weather sealing. Cable and connector loss reduces the effective link budget.

Do not add an RF filter automatically. First confirm through spectrum measurements or receiver testing that nearby transmitters are causing gateway blocking or desensitization.

Add Gateway Diversity Where Interference Is Localized

Where interference, fading, or obstructions affect only part of a site, an additional gateway can improve resilience. Shorter links may allow devices to use faster data rates, reducing airtime and battery consumption.

Overlapping coverage also provides macro-diversity. The same uplink may be received by more than one gateway, reducing dependence on a single RF path or gateway location.

The appropriate amount of overlap depends on application criticality, device density, packet-delivery targets, and infrastructure cost. Use site surveys and network analytics to identify blind spots and determine where additional gateways provide measurable value.

Step 4: Set an Interference-Control Policy and Choose the Right Hardware

After you tune channels and clean up the site, the next job is simple: keep it from slipping backward. That means clear operating rules and hardware that helps enforce them.

Define Network Policies That Prevent Self-Interference

Establish network policies that limit unnecessary airtime and prevent avoidable traffic congestion.

Define reporting intervals by device type and application requirement. Slow-changing measurements should use the longest interval that still supports the operational need.

Select confirmed or unconfirmed uplinks according to delivery criticality, reporting frequency, RF performance, and available downlink capacity.

Schedule non-urgent configuration changes and firmware activity during controlled maintenance windows. Where possible, use efficient data rates and avoid updating large portions of the device fleet simultaneously.

Document approved channel plans, ADR profiles, retry behavior, payload limits, and reporting intervals so that newly added devices follow the same operating standards.

Monitor, Document, and Respond to Interference Events

Treat RF monitoring as an ongoing network-management activity rather than a one-time commissioning task.

Track available gateway and network-server metrics, including:

• RSSI
• SNR
• Receive frequency
• Data rate and spreading factor
• Packet-delivery performance
• Gateway reception count
• Channel use, where supported

Establish a risk-based review schedule. Perform a baseline RF survey during commissioning and repeat the survey after major gateway moves, antenna changes, unexplained packet-loss events, or installation of nearby RF equipment. High-risk shared rooftops and industrial sites may require more frequent checks than stable, isolated installations.

Log each network or RF change, including:

• Channel-mask updates
• ADR-profile changes
• Gateway moves
• Antenna or cable replacements
• Filter installation
• Reporting-interval changes

Record the reason for the change and compare packet delivery, RSSI, and SNR before and after implementation.

Choose LoRaWAN Gateways and Sensors That Support Interference Mitigation

Select gateways, sensors, and network-management tools that provide the controls and diagnostic data needed for the deployment.

For US915 networks, confirm that the device, gateway, and network server support the required channel configuration. The system should allow the operator to verify channel masks and manage the channels used by the deployment.

Useful gateway metadata includes receive frequency, RSSI, SNR, timestamp, and data rate. Packet-error calculations, channel-use analysis, and fleet-level trends are generally produced by the network server or analytics platform rather than by the radio gateway alone.

Select end devices that support:

• The required regional channel plan
• ADR and ADR back-off
• Configurable reporting intervals
• Appropriate retry and acknowledgment behavior
• Remote configuration where required

At sites with high-power nearby transmitters, review gateway blocker performance and the availability of suitable external filtering before selecting the final RF hardware.

Conclusion: Diagnose, Tune, Redesign, and Enforce Policy

Interference in the U.S. 902–928 MHz band can often be reduced, but only after the root cause has been identified.

Begin by comparing packet delivery, RSSI, SNR, data rate, channel frequency, and gateway reception over time. Verify channel masks and network configuration before assuming the problem is external RF activity.

When interference is confirmed, reduce unnecessary airtime, optimize ADR and reporting behavior, improve gateway and antenna placement, and add RF filtering or gateway diversity where measurements show that they are needed.

Follow this order:

Diagnose first, tune second, redesign third, and keep monitoring.

Measure the effect of each change and document the results. Choose gateways, devices, and network-management tools that provide the configuration controls and diagnostic information needed to maintain network performance.

CHOOVIO offers LoRaWAN sensors and gateways for U.S. deployments. Network designs should be validated through site-specific planning and testing.

FAQs

How can I tell if packet loss is caused by interference or weak coverage?

Review RSSI, SNR, packet delivery, data rate, gateway reception, and channel frequency together. Do not use a single RSSI or SNR threshold as a universal diagnosis.

Weak coverage may show declining RSSI and fewer gateway receptions, particularly when performance improves as the device moves closer to the gateway.

Interference may appear as stable or relatively strong RSSI combined with worsening SNR, channel-specific packet loss, or failures that follow a repeating schedule. These symptoms can also result from channel-mask errors, antenna issues, or gateway receiver problems, so confirm the diagnosis with configuration checks and spectrum measurements.

For coverage problems, review antenna placement, gateway density, obstructions, and link margin.

For suspected interference, compare channel-level performance with spectrum activity and time-stamped packet logs.

When should I use ADR in a LoRaWAN network?

Adaptive Data Rate (ADR) allows the network server to adjust channel configuration, data rate, transmit power, and retransmission settings based on RF and packet-delivery conditions measured over time.

ADR is particularly effective for stationary sensors, meters, and monitoring devices. Mobile and nomadic devices may also use ADR, but their management profiles should account for rapidly changing RF conditions.

Enable ADR when supported, test how it works during the pilot phase, and confirm that the device correctly implements ADR back-off if network connectivity deteriorates.

How often should I run RF scans and review channel performance?

There is no universal RF-scan schedule for every deployment.

Establish a baseline during initial setup and regularly monitor available network metrics such as RSSI, SNR, packet delivery, data rate, gateway reception, and channel frequency.

Repeat spectrum scans when:

• Packet performance changes unexpectedly
• A gateway or antenna is moved
• New RF equipment is installed nearby
• Channel-specific loss appears
• A repeating interference pattern is suspected

Stable sites may need only periodic reviews, while shared rooftops, industrial plants, and other high-risk RF environments may require more frequent testing.
