Dragino DS03A-CB – NB-IoT/LTE-M Open/Close Door Sensor

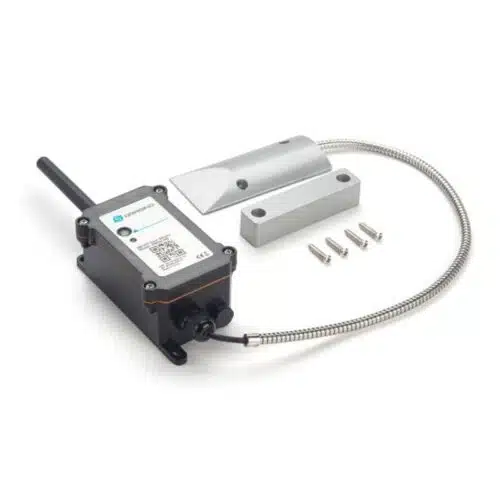

DS03A-CB NB-IoT/LTE-M Door Sensor

The Dragino DS03A-CB is an NB-IoT/LTE-M door sensor designed for Internet of Things applications. It detects door open/close status and sends data to an IoT server through an NB-IoT or CAT-M1 cellular network.

Users can monitor door status, open duration, and the number of open events through the connected IoT platform.

The DS03A-CB sends periodic data every two hours by default and can also send an uplink for each door open/close event. Event-based uplinks can be disabled so the sensor counts open events and reports them periodically instead.

The DS03A-CB also includes an Open Alarm feature, allowing users to configure an alert when a door remains open longer than a specified period.

Outdoor Cellular Door Monitoring

The DS03A-CB is designed for outdoor applications with a weather-resistant enclosure and industrial-grade battery suitable for operation across a wide temperature range.

It supports multiple uplink protocols, including MQTT, MQTTs, TCP, UDP, and CoAP, allowing integration with different IoT servers and applications.

The DS03A-CB supports Bluetooth 5.1 configuration and OTA firmware updates for convenient local setup and maintenance.

Built-in GNSS provides location reporting capabilities when configured.

The sensor is powered by an 8500mAh Li-SOCl2 battery for long-term operation and includes a Nano SIM card slot for cellular connectivity.

An optional version is available with a pre-installed SIM card and preconfigured IoT server connection for simplified deployment.

• NB-IoT and LTE-M / CAT-M1 cellular connectivity
• NB-IoT Bands: B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/B20/B25/B28/B66/B71/B85
• LTE-M/Cat-M Bands: B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/B20/B25/B26/B27/B28/B66/B85
• Ultra-low power consumption
• Door open/close detection
• Door open/close statistics
• Open Alarm feature
• 40 cm probe length
• Multiple sampling with one uplink
• GNSS location reporting
• Bluetooth 5.1 remote configuration and firmware updates

• Uplink via MQTT, MQTTs, TCP, UDP, or CoAP
• Periodic uplink reporting
• Configurable downlink commands
• 8500mAh battery for long-term operation
• Nano SIM card slot
• Weather-resistant design for outdoor applications
• Monitors door status, open duration, and open counts
• Configurable event-based reporting
• Optional pre-installed SIM and IoT server configuration

Applications:

• Wireless Alarm and Security Systems
• Home and Building Automation
• Industrial Monitoring and Control
• Door and Access Monitoring
• Remote Facility Monitoring

General:

• Model: DS03A-CB
• Network Technology: NB-IoT / LTE-M (CAT-M1)
• NB-IoT Module: BG95-NGFF
• Supply Voltage: 2.6V ~ 3.6V
• Operating Temperature: -40°C ~ 85°C
• Probe Length: 40 cm
• Configuration: Bluetooth 5.1
• Firmware Update: OTA via Bluetooth
• Location: GNSS location reporting

Cellular & Server Communication:

• NB-IoT Bands: B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/B20/B25/B28/B66/B71/B85
• LTE-M/Cat-M Bands: B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/B20/B25/B26/B27/B28/B66/B85
• Protocols: MQTT, MQTTs, TCP, UDP, CoAP
• SIM: Nano SIM card slot

Battery:

• Battery Type: Li-SOCl2 non-rechargeable battery
• Capacity: 8500mAh
• Self-Discharge: <1% per year @ 25°C
• Maximum Continuous Current: 130mA
• Maximum Boost Current: 2A for 1 second

Power Consumption:

• STOP Mode: 10uA @ 3.3V
• Maximum Transmit Current: 350mA @ 3.3V

Physical:

• Device Size: 13.0 × 5.0 × 4.5 cm
• Device Weight: Approximately 150 g
• Package Includes: DS03A-CB sensor and external antenna
