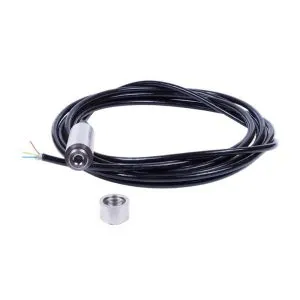

Liquid Level Sensor for Water Level, Oil Level and Mild-corrosive Liquid Level Monitoring

The Liquid Level Sensor is designed with industry-grade standards, for monitoring water level, oil level, and other mild-corrosive liquid levels. It incorporates stainless steel and insulated rubber, is IP68 rated, suitable for application in severe environments.

The Liquid Level Sensor measures the height of water or other liquid and converts it to the voltage signal. It works with a data logger or other devices that have analog voltage input ports. It can be used with the SenseCAP LoRaWAN® Data Logger to easily connect with the local LoRaWAN® network, enjoying the benefits of low-power and long-range communication.

The Liquid Level Sensor has a built-in silicon piezoresistive core that features high sensitivity. The internal chip converts the millivolt signal into a standard voltage signal, which can be connected to a computer, a control instrument, or a PLC.

It’s small in size and, lightweight, easy to install. A sealed stainless steel probe can work in water, oil, and mild-corrosive environments. The sensor has high anti-vibration and anti-impact performance. It can be widely used in process control, aviation, aerospace, automobile, medical equipment, HVAC, and other applications.

Applications

• Reservoir detection
• Pool pump station
• River monitoring
• Marine monitoring
• Lake Monitoring
• Sewage treatment
• Deep well, level monitoring
• Tank level monitoring

Output Voltage

Wiring Diagram

Probe Dimensions

• High-performance: Anti-interference and long-term stability
• User-friendly: Anti-blocking design, easy to clean
• Widely applicable: 0.5~4.5V transmission output, can work with digital displays, PLC, inverters, recorders, and other instruments
• Industry-grade Design: IP68 rating, durable and waterproof, suitable for outdoor severe environments; anti-corrosion, durable and stable
• In line with International Standards: FCC, CE, and RoHS certified
