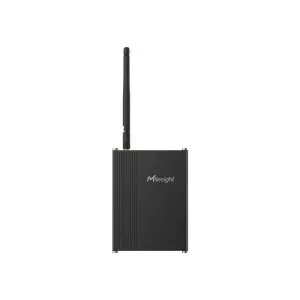

UC300 LoRaWAN and 4G LTE IOT Controller

SKU: N/A Brand: Milesight

$140.00 – $210.00

Support LoRaWAN® or 3/4G wireless communication
Easy to connect with diverse wired devices through DIO/AI/RS232/RS485/PT100
RTD input interface
Multiple triggering conditions and actions
Embedded watchdog for device working stability
Industrial metal case design with wide operating temperature range
US915 Support

Connectivity

Clear

Add to wishlist

UC300 LoRaWAN and 4G LTE IOT Controller

UC300 series is an IoT controller used for remote control and data acquisition from diverse devices. It contains multiple I/O interfaces including analog input, digital input, relay output, serial port, PT100RTD input, which support remote device data transmission via LoRaWAN® or 3/4G networks. Besides, UC300 series supports multiple trigger conditions and actions which can work autonomously even when the network dropped. Combining with Milesight IoT Cloud solution, it can monitor and control remote devices via web server or mobile App easily. Adopting industrial design and IP30 metal case, UC300 is widely used in indoor applications like smart factory, building automation, etc.

Reimagine Remote Monitoring and Control

UC300 IoT Controller

Rich Industrial Interfaces
Temperature Transmitter
Intelligent Trigger System
Autonomous Operation
Flexible Cloud Integration

Rich Industrial Interfaces

Integrating multiple and various kind of industrial interfaces for monitoring and control field sensors or devices simultaneously.

UC300 IoT Controller Topology

6 × Analog Inputs
4 × Digital Inputs
2 × Digital Outputs
1 × RS232 + 1 × RS485

Temperature Transmitter

Besides the 4~20 mA & 0~10 V type analog interfaces, the UC300 firstly adopts 2 RTD inputs for accepting and converting 2/3 wires PT100 sensors‘ resistance signal into 4-20 mA current signal with a range from -200°C to 800°C.

Intelligent Trigger System

Users are able to set up 16 commands based on custom trigger conditions & actions to realize intelligent task like timing data collection.

Autonomous Operation

Milesight UC300 IoT controller can execute the commands autonomously even when the network is unavailable.

Features

Easy to connect with diverse wired devices through DIO/AI/RS232/RS485/PT100RTD input interfaces
Support LoRaWAN® or 3/4G wireless communication
Multiple triggering conditions and actions
Embedded watchdog for device working stability
Industrial metal case design with wide operating temperature range
Compliant with standard LoRaWAN® gateways and network servers
Quick and easy management with Milesight IoT Cloud solution

Specifications

Wireless Transmission

Technology: LoRaWAN® or 2G/3G/4G (Hardware Optional)
LoRaWAN®: CN470/RU864/IN865/EU868/US915/AU915/KR920/AS923-1&2&3&4
OTAA/ABP Class C
Cellular: 1 (Micro SIM-3FF)
TCP/UDP/MQTT/AWS/ONENet/Milesight IoT Cloud/SMS Application Mode

Data Interfaces

Interface Type: 3.5 mm Terminal Block
GPIO: 4 × DI + 2 × DO
Serial Port: 1 × RS232 + 1 × RS485
Analog Input: 2 × 4~20 mA, 2 × 0~10 V, 2 × PT100 RTD Input

Others

Configuration Port: 1 × Type-C
LED Indicators: 1 × System, 1 × ACT
Built-in: Watchdog, Timer

Physical Characteristics

Operating Temperature: -20°C ~ 60°C (-4℉ to +140℉)
Dimensions: 93 × 70 × 22 mm (3.66 × 2.76 × 0.87 in)
Installation: Desktop, Wall Mounting, DIN Rail Mounting
