Name: UG63 Mini LoRaWAN Gateway
SKU: UG63-US915
Availability: OutOfStock

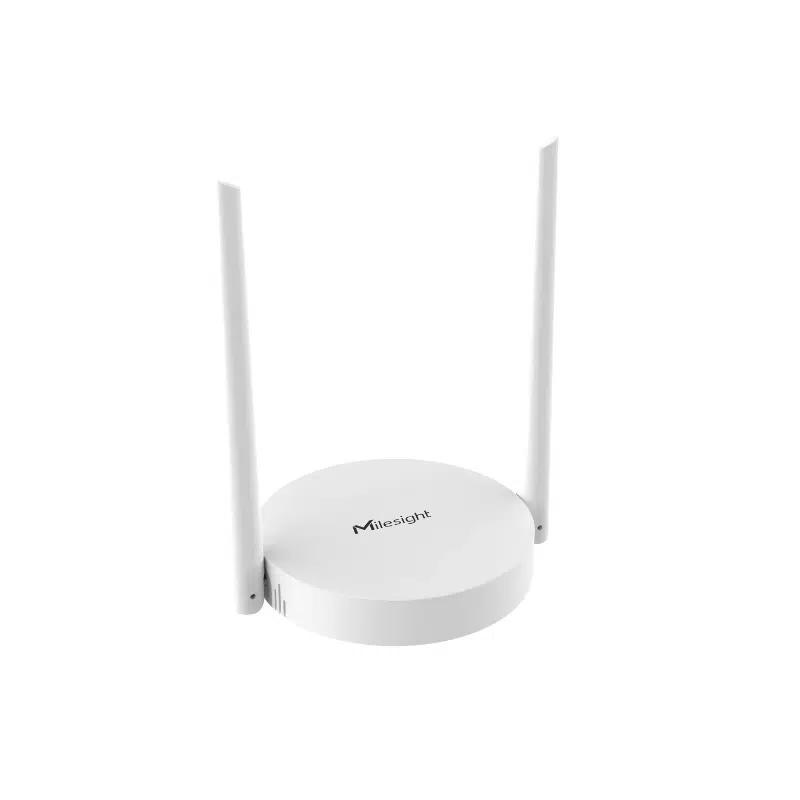

UG63 Mini LoRaWAN Gateway

Brand: Milesight SKU: UG63-US915

$199.00

8 Channels
Full Duplex
Low Power Consumption
High Compatibility
US915 Frequency Support

Out of stock

Want to be notified when this product is back in stock?

UG63 Mini LoRaWAN Gateway is an 8-channel lightweight indoor LoRaWAN® gateway. Adopting the SX1302 LoRa chip and high-performance CPU, UG63 supports connection with more than 2000 nodes and can cover 15 km in sight and about 2 km in an urbanized environment. With its compact size, it is ideally suited for offices, parking lots, campuses, hotels, exhibition centers, and many other indoor areas. It also applies to provide coverage for indoor blind spots.

UG63 Mini LoRaWAN Gateway has both integrated mainstream network servers (such as TTN, ChirpStack, etc.), and a built-in network server.

Mini yet Powerful

Eye-Catching Design

Sticking to minimalism, the UG63 Mini LoRaWAN^® Gateway is as small as a disk. Coupled with an elegant and aesthetic appearance, UG63 is in perfect accord with the office surroundings.

Massive Connectivity

Adopting Semtech SX1302 LoRa chip, UG63 supports connection with more than 2000 LoRaWAN^® nodes.

8 Channels
Full Duplex
Global Frequency Plans
(CN470/IN865/EU868/RU864/US915/AU915/KR920/AS923)

Blind Spot Coverage

Besides the general features of a LoRaWAN^® gateway, the Gateway Fleet makes UG63 particularly suited for providing network coverage for indoor blind spots.

Gateway Fleet

The Gateway Fleet feature enables multiple agent gateways transmitting received data to one controller gateway, which facilitates the deployment and management of LoRaWAN^® network.

Listen Before Talk

The Listen Before Talk (LBT) protocol makes it possible for multiple transmitting nodes to share the same transmitting channel, which allows the device to bypass the Duty Cycle requirement imposed by European standards.

Features

High-performance NXP industrial processor with big memory
Equip with SX1302 chip, handling a higher amount of traffic with lower consumption
8 half/full-duplex channels
Support worldwide LoRaWAN® frequency range from 470 MHz to 928 MHz
Support Listen Before Talk (LBT) for downlink
Desktop, wall or ceiling mounting support
DeviceHub and Milesight IoT Cloud provide easy and centralized management of remote devices
Enable security communication with multiple VPNs like IPsec/OpenVPN/L2TP/PPTP/DMVPN
Compatible with mainstream network servers like The Things Industries, ChirpStack, etc.
Detect and analyze the noise level and provide an intuitive diagram for deployment
Built-in network server and MQTT/HTTP/HTTPS API for easy integration

Specifications

Hardware System

CPU: 528 MHz, ARM Cortex-A7
Memory: 256 MB DDR4 RAM
Flash: 4 GB eMMC

LoRaWAN

Antenna: 2 × Internal Antennas
Channel: 8 (Half/Full-duplex)
Frequency Band: CN470/IN865/EU868/RU864/US915/AU915/KR920/AS923-1&2&3&4
Sensitivity: -140dBm Sensitivity @292bps
Output Power :27dBm Max
Protocol: V1.0 Class A/Class B/Class C and V1.0.2 Class A/Class B/Class C
LBT: Support

Ethernet Interface

Port: 1 × RJ45 (PoE PD supported)
Physical Layer: 10/100 Base-T (IEEE 802.3)
Data Rate: 10/100 Mbps (Auto-Sensing)
Interface: Auto MDI/MDIX
Mode: Full or Half Duplex (Auto-Sensing)

Others

Reset Button: 1 × RST
Console Port: 1 × Type-C
LED Indicators: 1 × SYS, 1 × LoRa
Built-in: Watchdog, RTC, Timer

Software

Network Protocols: PPPoE, SNMP v1/v2c/v3, TCP, UDP, DHCP, DDNS, HTTP, HTTPS, DNS, ARP, SNTP, Telnet, SSH, MQTT, etc.
VPN Tunnel: OpenVPN/IPsec/PPTP/L2TP/GRE/DMVPN
Management: Web, CLI, DeviceHub, Milesight IoT Cloud

Power Supply and Consumption

Power Input:
1. 1 × 802.3af standard PoE input
2. 5V by Type-C Port
Power Consumption: Max 3.3 W

Physical Characteristics

Ingress Protection: IP30
Dimensions: Ф 115 x 21 mm (Ф 4.52 x 0.83 in)
Color & Material: White, PC + ABS
Installation Desktop, Wall or Ceiling Mounting

Environmental

Operating Temperature: -20°C to +50°C (-4℉ to +122℉)
Storage Temperature: -40°C to +85°C (-40℉ to +185℉)
Ethernet Isolation: 1.5 kV RMS
Relative Humidity: 0% to 95% (non-condensing) at 25°C/77℉
