AM308L 9-in-1 IAQ Sensor
AM307/AM308/AM319 is a comprehensive IAQ sensor for detecting CO2 concentration, temperature, humidity, light, HCHO/O3 level, TVOC, barometric pressure, PM2.5, PM10 and motion.
Log in / Sign up
Login
Register
You may be interested in…
Milesight AM308L 9-in-1 IAQ Sensor
$400.00
- 9 Sensors in 1
- Traffic Light Indicator & Buzzer
- Anti-theft Protection
- Vivid Emoticon Indication (AM307/AM308/AM319)
- Powered via USB Type-C (AM319/AM319L)
- Battery Life up to 3 Years (AM307) / 1 Year (AM308)
- Battery Life up to 4 Years (AM307L) / 1.5 Year (AM308L)
15 in stock
Improving Energy Efficiency and Indoor Comfort
Milesight 47,000 LoRaWAN® IAQ Sensors in Canadian Schools
With province-wide LoRaWAN® IAQ solution deployment, students and staff in Quebec’s public schools are now in a healthier learning environment with more helpful insights. Check how Milesight has made it happen!

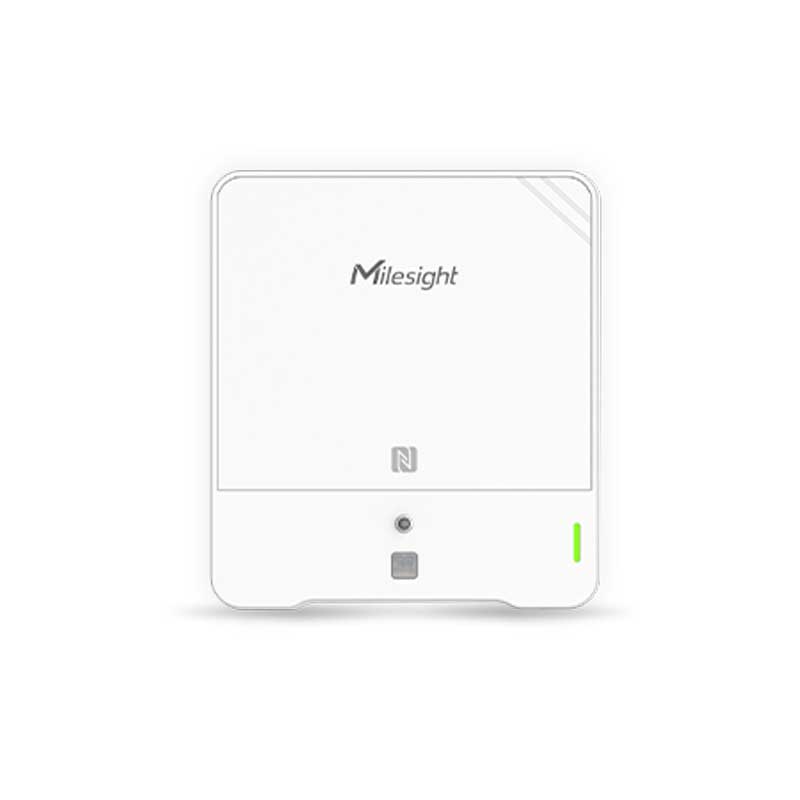

AM308L 9-in-1 IAQ Sensor
Integrated 9 types of sensor to measure various ambience conditions
Superior Sensor with
Strong Anti-Interference
Selection for HCHO sensor is dedicated to stable reading, particularly in its resistance to alcohol.
NFC Configuration
Switching On/Off & Configuring the Devices Wirelessly
1st Step
Install the
Milesight ToolBox
2nd Step
Enable NFC and run ToolBox,
then attach your phone to the device
3rd Step
Verify the password
and start configuring
Features
- Integrated with multiple sensors like humidity, temperature, CO2, light, barometric pressure, PM2.5, PM10, etc.
- Multiple display modes and clear emoticon to easily understand the comfort levels via screen
- Support batteries or DC power supply
- Equipped with traffic light indicator and buzzer to indicate device status and threshold alarms
- Store locally 18, 000 historical records and support retransmission to prevent data loss
- Compliant with standard LoRaWAN® gateways and network servers
- Quick and easy management with Milesight IoT Cloud
Specifications
Wireless Transmission
Technology LoRaWAN®
Frequency CN470/RU864/IN865/EU868/US915/AU915/KR920/AS923-1&2&3&4
Tx Power 16dBm(868MHz)/22dBm(915MHz)/19dBm(470MHz)
Sensitivity -137dBm @300bps
Work Mode OTAA/ABP Class A
Sensors
Temperature
Operating Principle Digital CMOSens® technology (MEMS)
Range -20°C~60°C
Accuracy ± 0.2°C
Resolution 0.1°C
Humidity
Operating Principle Digital CMOSens® technology (MEMS)
Range 0% ~ 100% RH
Accuracy ± 2% RH
Resolution 0.5% RH
Motion
Operating Principle Passive infrared (PIR)
Detection Range 80 ° Horizontal, 55 ° Vertical, 5m
Status Vacant/Occupied
Light
Operating Principle Photodiode
Range 0-60000 Lux (Determine as 6 levels, 0-5)
TVOC
Operating Principle MOX (MEMS)
Range1 1.00 ~ 5.00 (IAQ Rating)
Accuracy ±1
Resolution 0.01
Barometric Pressure
Operating Principle Piezoresistive absolute pressure sensor (MEMS)
Range 260 – 1260 hPa
Accuracy ±0.5 hPa
Resolution 0.1 hPa
Carbon Dioxide (CO2)
Operating Principle Nondispersive Infrared (NDIR)
Range 400 ~ 5000 ppm
Accuracy ± (30 ppm + 3 % of reading)
(0°C~ 50°C, 0% to 85%RH)
Resolution 1 ppm
PM2.5 & PM10
Operating Principle Laser Scattering
Range 0 ~ 1000 μg/m3
Accuracy 0~100(±10μg/m3), 100~1000(±10 %) (-10°C~ 60°C)
Resolution 1 μg/m3
Formaldehyde (HCHO)2
Operating Principle —
Range3 —
Accuracy —
Resolution —
Working Life —
Ozone (O3)2
Operating Principle —
Range —
Accuracy —
Resolution —
Working Life —
Display & Configuration
Display AM307 & AM308 & AM319: 4.2-inch Black & White E-Ink Screen
AM307L & AM308L & AM319L: Not Support
Button 1 × Power Button + 1 × Reset Button
LED & Buzzer 1 × Traffic Light Status Indicator + 1 × Buzzer
Configuration 1. Mobile App via NFC
2. PC software via NFC or USB Type-C port
Physical Characteristics
Power Supply 1. 4 × 2700 mAh ER14505 Li-SOCl2 Replaceable Batteries
2. 5V/1A by Type-C Port
Battery Life4 AM308: Over 1 Year
(10 min interval, 25°C) AM308L: Around 1.5 Year
Operating Temperature -20°C – 60°C (E-Ink Screen: 0°C – 40°C)
Relative Humidity 10% – 90% (non-condensing)
Ingress Protection IP30
Dimension 100.8 × 114 × 22 mm (3.97 × 4.49 × 0.87 in)
Installation 3M Tape Mounting, Wall Screw Mounting
Approvals
Regulatory CE, FCC, ISED
Environmental RoHS
