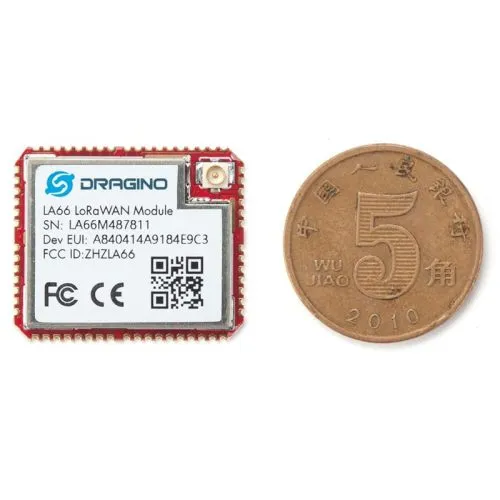

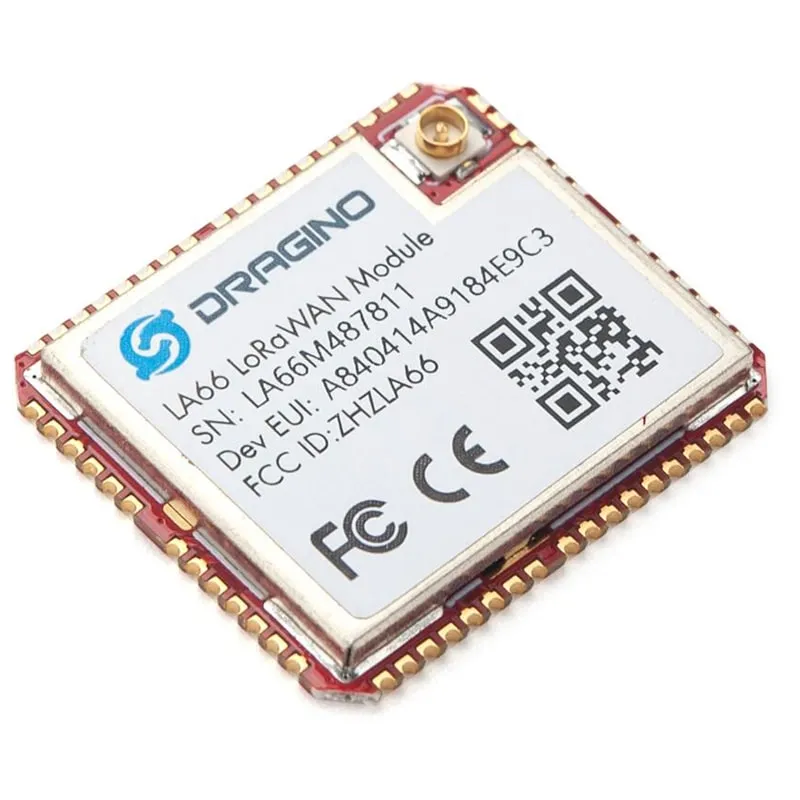

Dragino LA66 LoRaWAN Module

Dragino LA66 is a small wireless LoRaWAN module offering a compelling mix of long-range, low power consumption, and secure data transmission. It is designed to facilitate developers to deploy industrial-level LoRaWAN and IoT solutions quickly. It helps users to turn the idea into a practical application and make the Internet of Things a reality. It is easy to create and connect your things everywhere.

LA66 is a ready-to-use module that includes the LoRaWAN v1.0.3 protocol. The LoRaWAN stack used in LA66 is used in more than 1 million LoRaWAN End Devices deployed world widely. This mature LoRaWAN stack greatly reduces the risk of making stable LoRaWAN Sensors to support different LoRaWAN servers and various countries’ standards. External MCU can use AT command to call LA66 and start to transmit data via the LoRaWAN protocol.

• Support LoRaWAN v1.0.3 protocol
• Support peer-to-peer protocol
• TCXO crystal to ensure RF performance on low temperature
• SMD Antenna pad and i-pex antenna connector
• Available in different frequency LoRaWAN frequency bands.
• Worldwide unique OTAA keys.
• AT Command via UART-TTL interface
• Firmware upgradable via UART interface
• Ultra-long RF range

• CPU: 32-bit 48 MHz
• Flash: 256KB
• RAM: 64KB
• Input Power Range: 1.8v ~ 3.7v
• Power Consumption: < 4uA.
• Frequency Range: 150 MHz ~ 960 MHz
• Maximum Power +22 dBm constant RF output
• High sensitivity: -148 dBm
• Temperature:
  • Storage:     -55 ~ +125℃
  • Operating: -40 ~ +85℃
• Humidity:
  • Storage:     5 ~ 95% (Non-Condensing)
  • Operating: 10 ~ 95% (Non-Condensing)
• LoRa Rx current: <9 mA
• LoRa Tx Current: <90 mA at +17 dBm, 108 mA at +22 dBm
• I/O Voltage: 3.3v
